How to Configure Brovis Wireless Device Access Point Mode Configuration

Step: 1  Brovis AC-130 Device Configuration

To Brovis AC-130 Device Configuration utility, open a web browser such as Internet Explorer and enter the IP address of the Device (Default is -192.168.1.20).
Default Brovis AC-100-BG-HP ,AC-130-BG-HP Username – admin
Default Brovis AC-100-BG-HP ,AC-130-BG-HP password – 5up

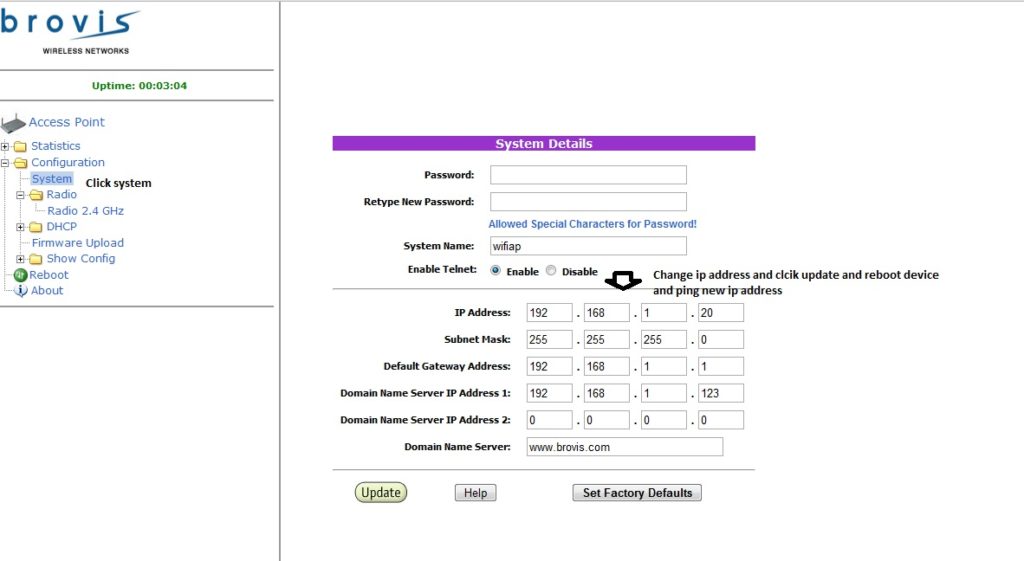

Step:2 Brovis Device Ip configuration

Go To system and Find Ip address 192.168.1.20. change new ip whatever you want to change

Brovis AC-130-BG IP configuration Page

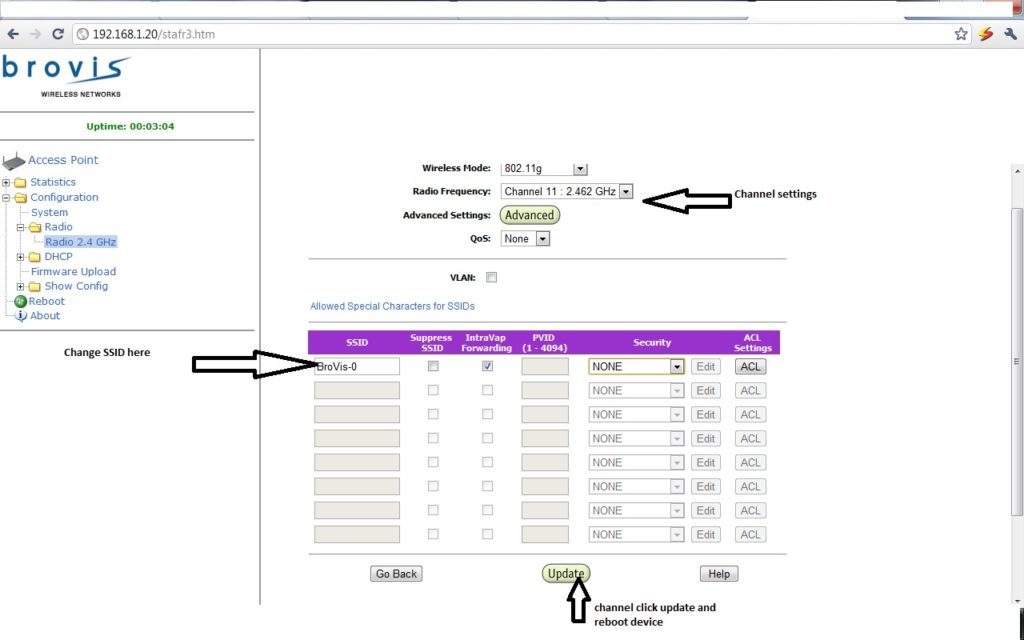

Step:3 Brovis Wireless SSID Configuration

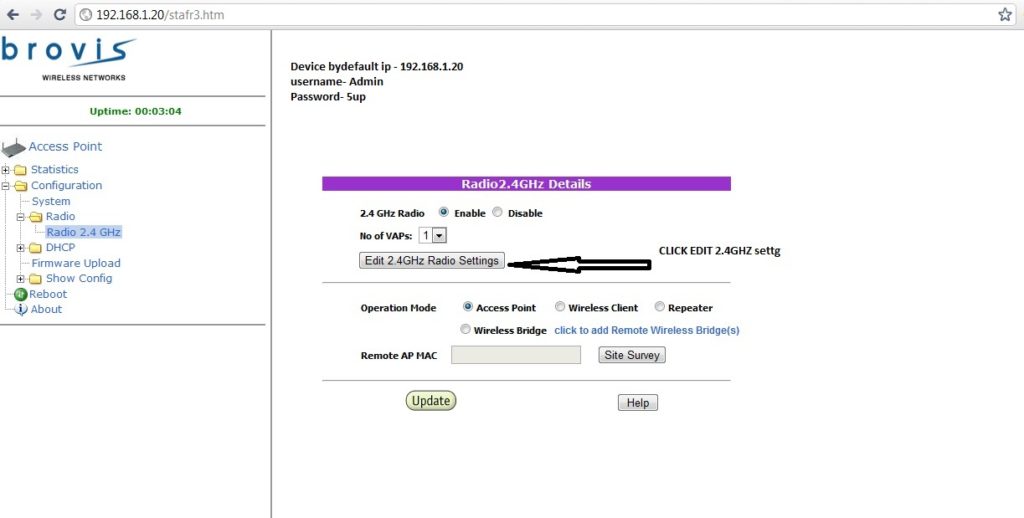

Go to Left side menu Radio –>Radio 2.4Ghz–> Edit 2.4 GHz Radio Setting and follow pic below

Brovis AC-130 Radio Wireless Security Configure



The best WiFi Heatmap Software Tools for Mac and Windows

Step:4 Wireless Security Configuration

Go to Left side menu Radio –>Radio 2.4Ghz–> Edit 2.4 Ghz Radio Setting and follow pic below

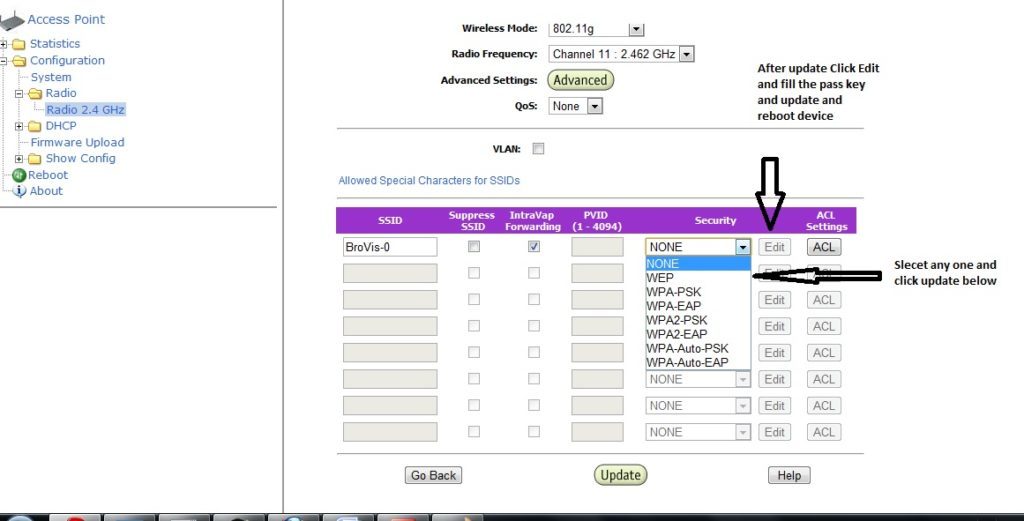

Brovis AC-130 Device Configuration

Step: 5

Select Security type ie WEP,WPA,WPAS2PSK..etc and click update

Click Edit button and set the password for the wireless

After set security click update and reboot device

Brvois air client device settings

Step: 6

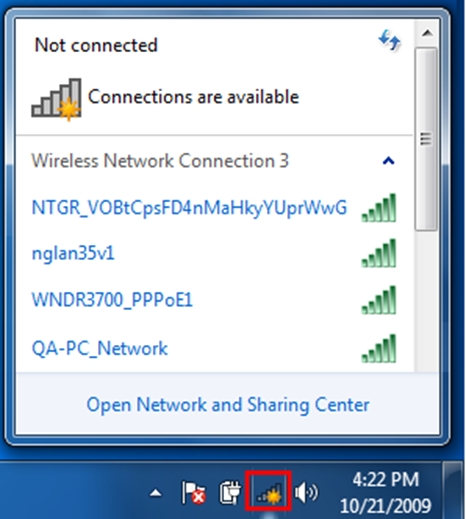

Connect Device to the Internet and go to a wireless connection in your Laptop/PC

Click on your wireless name (ssid) and when password box prompt put the password you set in the device and click connect

Brovis AC-130-BG-HP Device Testing
