OPL Web Smart Switch Loop detection and Port Isolation Configuration
OPL RPoE-WM-2U-AG switch is 8 port web smart switch with a reverse PoE function. To know more about reverse PoE function see here. In this switch 2 Uplink and 6 normal with PoE in power function with semi-managed. OPL RPoE-WM switch comes with Loop detection, port isolation, VLAN configuration, and many other semi-management features required for network management.
- How to Connect Any Wi-Fi without Password from Mobile?
- The 5 Important Tools for Design, Installation and Manage Fibre Networks
This post I will describe OPL RPoE-WM-2U-AG Loop Detection and Port isolation configuration to protect your network from looping and network data sharing protection.
What is Loop Detection Feature in Managed Switch?
Loop Detection and Loop prevention feature detect the looping issue in the network and shut the port getting loop issue. Loop detection configuration should be always enabled to prevent your network from the looping issue. It is a feature always on to help remove the loops from the network and keep the network always up.
The Loop Detection Configuration in OPL Web Smart Reverse PoE Switch
In OPL managed switch Loop detection feature and loop prevention feature available. In one time we can only enable one feature from loop detection and loop prevention.
Loop Detection:
If Loop detection is enabled then switch disable the same port when any looping issue comes. After disable it check the according to time we have set for interval and recover the port time.
Loop Prevention:
Prevention means before any loop comes it regularly checks the port for any issue as per the time set in settings.
Read More:
- How to setup QoS to set internet Speed limit for WiFi User
- How to use WhatsApp without Phone Number with Tricks

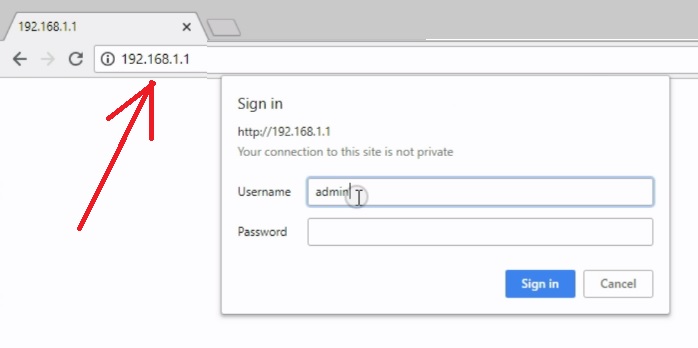

Login OPL Web Smart Switch.
OPL default IP Address: 192.168.1.1
Configure the Laptop or Desktop LAN IP with same series (Ex 192.168.1.10)
See here how to configure Laptop / Desktop LAN IP
OPL default username/password – admin/admin

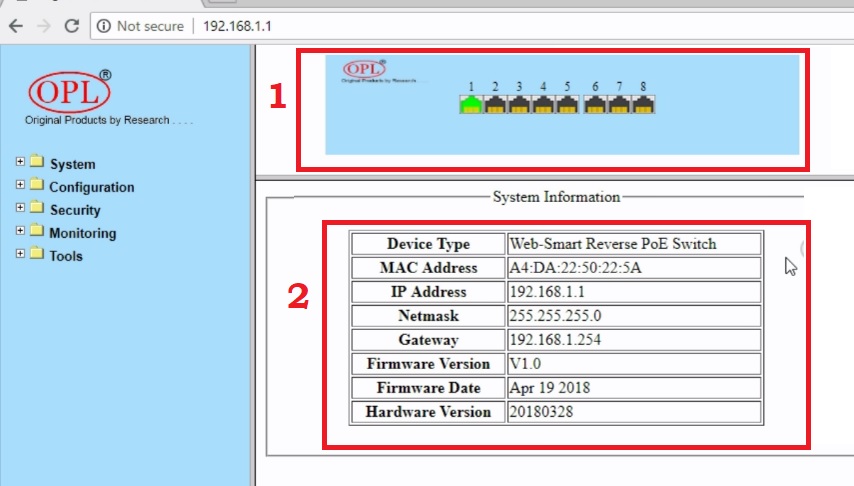

After Login switch will open in the Status page.
- Physically connection status on switch ports.
- System information- this will show Mac Address, IP Address Firmware version, and Hardware version details.

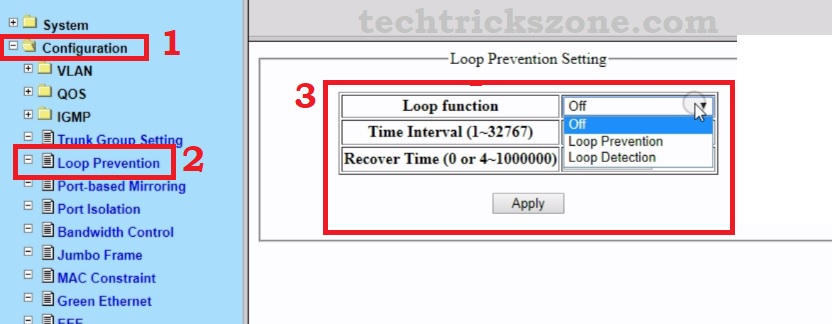

Enable Loop Detection Feature now. Go to
- Configuration
- Loop Prevention
- Loop Function: choose the Function you want to configure.

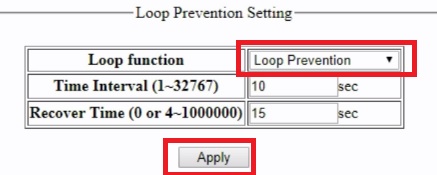

Loop Prevention Configuration.
Loop Function – Loop Prevention
Time Interval: 1-32767 (this time will use them for interval while checking loop issue)
Recover Time: 0 or 4-1000000 (this time use to recover the loop issue in case any loop detect in networks)
Press the Apply button

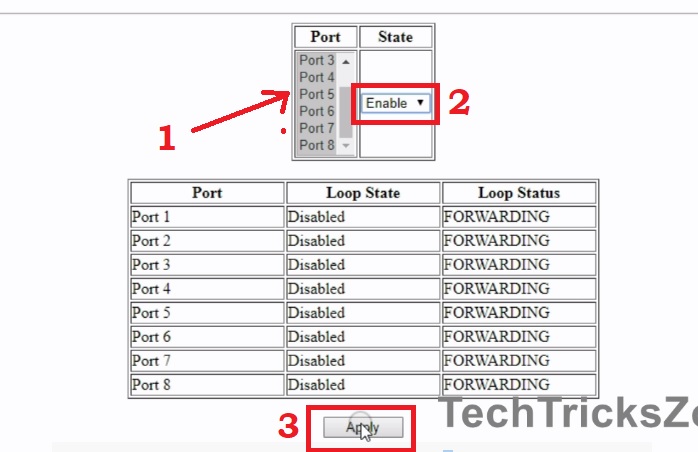

After enabling loop prevention you will get all port list with the current status.
- Port: Select the port you want to enable Loop prevention.
- State: Enable – choose to enable state
Apply: press Apply button to enable settings.
Enable save the setting under Tools from the Left side menu.

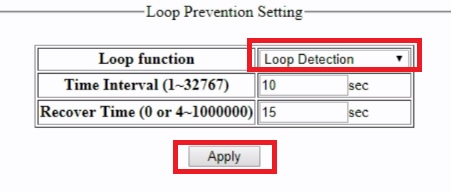

Loop Detection configuration web smart switch
Loop Function: choose Loop detection
Time interval – set the time for an interval to check loop issue.
Recover Time– Set time for recovery during loop detection in the network.
Press the Apply button and Save the settings from Tools option from Menu.
After enabling the looping function your network will not affect due to any looping occur in networks. The port that creates any loop will auto shut until the loop removed from the networks.
The configuration of the Loop feature is the same for any brand managed to switch such as Netgear web smart switch, D-Link web smart switch, TP-Link smart switch. The function is the same to detect and remove any type of looping from the network and the network lets down the network due to loop issues.
Read More:
- 5 Best L3 Managed Network Switch for Small and Large Network
- The 15 Best Wireless Range Extenders to Boost WiFi signal [Updated]
OPL Web-smart Switch Port Isolation Configuration
Port isolation also one of the best features of any smart switch to protect un-authorized network access with connected in the same switch.
What is Port Isolation?
Port Isolation also called a private VLAN. It restricts the port access from other port with isolation enable. We can configure the port isolation with each port we want to restrict from any particular port.

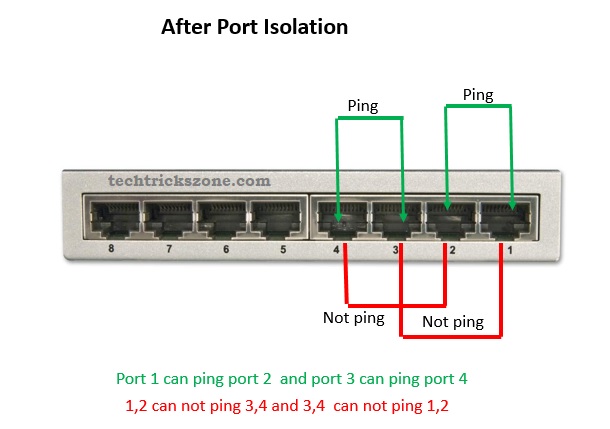

EXP: We can set Port 1 Can access Port 2 to port 8 but port 2 to 8 cannot access each other.
Use of Port Isolation?
We can isolate port to share the network with each other. We can restrict client connected to port cannot access each other network it will help to protect the local data. For ISP port isolation can use to distribute multiple clients with the same switch with protecting the access of each other networks.
To enable port isolation to follow the steps below.

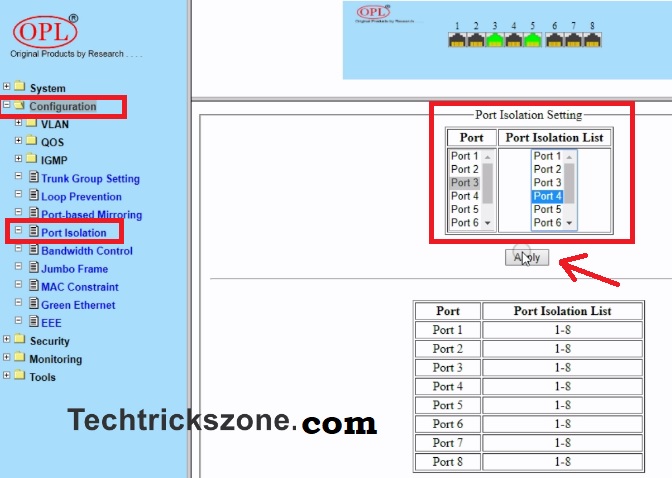

Go to Configuration – Port Isolation
Port Isolation Settings
Port – select the port for isolation
Port Isolation List- choose the port you want to share access with
EXP: in pic port 3 select to share with port 4.
Means 3 can only access port 4.
After select both port press Apply button.

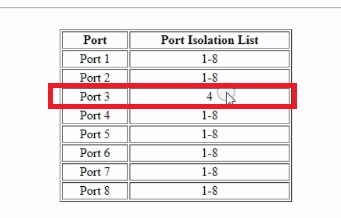

See in the below list port 3 select with port 4
After confirming all port isolation settings press Save button under Tools in the left side menu.
The switch will reboot and few seconds to save all settings. After that, you can use OPL RPoE managed switch in networks. This basic feature of OPL Web Smart Switch Loop detection and Port Isolation will help you to fault-finding in the network and ensure your data protection by sharing with each other user connected with the same switch.
