Tenda AC10 Smart Dual-Band Wi-Fi Router setup (Last Updated On: December 6, 2018)

Tenda AC10 Smart Dual-Band Wi-Fi Router setup and configuration using PC/Laptop for your home in simple steps. The wrong configuration can spoil your wifi network performance so always use the professional way to setup your wifi routers.

Tenda AC10 Smart Dual-Band Wi-Fi Router setup & Configuration

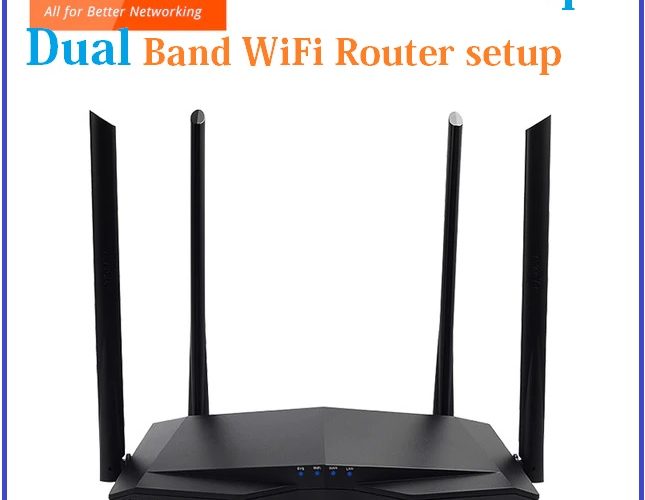

The Tenda AC10 models belong to the Tenda AC series WiFi router with multiple AC model number depends on wireless Speeds. Tenda AC10 is a smart and powerful wifi router with 1200Mbps Wi-Fi speeds to provide seamless networks. AC10 best dual band wifi router for home use to get buffering free HD movies and Netflix live streaming. This router comes with 3Giga LAN and 1 Gigabit WAN port with AP, router, Repeater wireless modes. 4 No’s 5 dBi antenna provide the long-range signal for your house to be turned into a smart home. If you are looking for a long-range wireless router for your large size house than AC10 can be the best solution for the larger house. Tenda Ac10 1200Mbps inbuilt with advanced wireless features such as wireless beamforming, anti-interference, and TX power controlling as per the size of the house.

It also provides you security feature with latest wireless security, VPN, Port forwarding and access control list to ensure your home wifi safety. AC1200 Smart Dual-Band Gigabit WiFi Router fully supported cross platform such as Windows, Linux, Mac OSX and Android as well as IOS. In this post, you will get complete setup guide for tenda ac dual band hotspot wifi wan router using the direct internet to configure on WAN port.



Tenda AC10 Dual Band WIFi Router Default Settings

To setup and configure any Wireless router required default factory settings to access it to laptop or mobile. You can also get default router settings to detail back size sticker or user guide comes with wifi routers.

Tenda Default IP Address- 192.168.0.1   or URL-tendawifi. Com

Default username- NA

Password- required to create during the first-time setup



Tenda AC10 Smart Dual-Band Wi-Fi Router setup Connection Diagram

The next step of setup Tenda wifi router is the physical connection of wifi router to PC/Laptop.

Connect WAN port to internet cable coming from your internet providers.

Yellow port (1-3) connect LAN cable to PC/Laptop LAN port.

Configure your Laptop/PC LAN IP with the same series of Tnenda default IP address. EXP- use 192.168.0.10 in PC/Laptop LAN to access Tenda Wi-Fi router.

tenda ac9 gigabit 11ac dual band wifi router review



Tenda AC DUAL Band Wireless Router First Time Login

Once physical connection did you can access your Tenda AC wifi router using default IP or URL given on the above steps.

Open the Web browser and type 192.168.0.1 or tendawifi.Com or and hit enter

You will get setup wizard just skip the option to enter in web interface settings.

tenda ac18 ac1900 smart dual-band gigabit wifi router

 Tenda AC10 Dual Band WiFi Router Login Password set

In the next step, you will get an option to configure WiFi password and Login password.

Type the Login password in the box and click the next button to enter in settings.

tenda ac10 ac1200 smart dual-band gigabit wifi router setup for airtel

You will land on the status page, where you can see device status as well as connected client list.

tenda ac15 ac1900 smart dual-band gigabit wireless router default settings

After successful login now proceeds to configuration part of tenda Ac router.



Tenda AC10 Dual Band WiFi Router WAN Configuration for Internet

To configuration of Tenda AC10 WiFi router in Router mode WAN internet settings required. To configure WAN settings follow the steps below.

Go to Internet Settings

1: Connection Type- Choose the internet type from PPPoE, Static, DHCP as provided by your ISP.

Here I am using Static IP for my internet so I choose Static IP.

2: IP Address- Internet IP Address provided by your internet providers.

Subnet mask-

Gateway-

3: type the DNS server got from ISP or you can use global DNS server as shown below image.

Click the Connect button to save settings.

tenda smart wireless router 1200mbps dual-band firewall setting

Internet Settings did with this steps, now Wireless Configuration.



Tenda AC10 Dual band WiFi Router Wireless SSID and Password Settings

Wireless settings contain the SSID ( WiFI network name), password and wireless channel and other parameters to tune your wifi router perfectly with high performance. To configure Tenda AC10 WiFi name and password go to WiFi Settings tab from the left side menu.

Go to Wi-Fi Settings

tenda a6 ac1200 smart dual band wireless router

1: WiFi Name & Password

Click the first option to change wifi name and password for your Tenda dual band Wifi routers.

A: 2.4 GHz Network

WiFi Name– type 2.4GHz WiFi name in this box.

Encryption Mode: choose the WPA/WPA2 (recommend).

WiFi Password: type password for 2.4GHz in this box.

 Tenda AC15 AC1900 Smart Dual-Band Gigabit WiFi Router

B: 5 GHz Network

WiFi Name– type 5 GHz WiFi name in this box.

Encryption Mode: choose the WPA/WPA2 (recommend).

WiFi Password: type password for 2.4GHz in this box.

Click Save button to apply settings



2: Channel & Bandwidth

This is the most important settings to improve your dual band wifi router performance and stability over wifi networks. Selecting the wrong channel can be degraded wifi performance and cause of interference.

A: 2.4 GHz Network

Network Mode: B/G/N mixed (keep this setting)

WiFi Channel- Choose the channel 1,6,11 ( if using single Wi-Fi router use Auto)

WiFi Bandwidth- use 20/40

Tenda AC1900 Dual-Band Wi-Fi Router Black AC15

B: 5 GHz Network

Network Mode: 11a/n/ac (keep this setting)

WiFi Channel- Choose the channel with 2-3 channel spacing (use Auto if the only single device using in the location)

WiFi Bandwidth- use 20/40/80 (use 80 in case required high Wi-Fi speed)

Click Save button to apply settings.



3: Transmit Power

This step is most important part of Tenda AC10 Smart Dual-Band Wi-Fi Router setup for small home. Controlling transmit power is recommended in case your house is medium or small size.

1: control 2.4GHz transmit power in this option. use Low for small home size, Medium, and high depending on your area.

2: 5 GHz signal strength – control power Low, Medium and High as per home size.

TENDA TE-FH1202 Wireless High Power AC1200 Dual Band Gigabit setup

Click Save settings.

4: Beamforming

Beamforming technology is a smart way to enhance signal coverage toward client location and improve signal strength.

To enable beamforming to switch the button to green.

TENDA TE-FH1201 High Power AC1200 Dual-band Wireless port forwarding

5: Anti-interference

Anti-inference feature will control the interference issue in your Wifi network due to multiple networks running on the same location.

Click Auto to Enable Anti-interfere.

tenda concurrent dual band wireless n600 gigabit router

This is a simple and quick configuration manual for non-technical persons. You can easily double WiFi speed of your Wireless router using proper configuration. check out the Tenda AC10 Smart Dual-Band Wi-Fi Router setup and get the performance double and problem-free wireless networks.
