Mikrotik DISC Lite5 Setup and Configuration Manuals

June 10, 2017 by admin

Mikrotik DISC Lite5 Point to Point Configuration

 Mikrotik  DISC Lite 5 is an alternate of Mikrotik SXT lite 5 with the low-cost point to point and point-multipoint solution. Disc Lite 5 also the best option for CPE device for ISP internet solution distribution for customer premises device. DISC Lite 5 high gain antenna enables a device to be used for 4-5 Km Distance internet connection and wireless bridging connectivity. Device CPU chip-set AR9344 based with 600Mhz speed, Flash size 16 MB and memory 64MB Ram make it Faster. Antenna gain 21 dBi make it ready for long-distance. Mikrotik DISC Lite5 has 1 10/100Mbps PoE Ethernet Port. enjoy the simple and effective tutorial for Mikrotik Disc Lite5 configuration.

  •  Protect Network and Wireless Devices from Lighting and Thundering

Mikrotik DISC Lite 5 Firmware Licenses Level is 3 so it’s doesn’t support AP Bridge mode. But bridging mode let you enable it for  Point to Point connectivity and Station mode allows you to connect it with third-party OEM Access Point. Although Mikrotik device firmware is the same for all hardware so all device configuration is same. But for DISC Lite 5 configuration you’re required the latest version(Winbox v3.11) of winbox to configuration it. You can configuration with a web configuration page. Download Winbox v3.11 Free Now. read more to understand Mikrotik Disc Lite5 configuration and specifications.

  • How to block any Website and Apps on basic WiFi Router
  • How to design OTP Based Authentication Hotspot Solution for Coffee Shop



Mikrotik DISC Lite 5 Configuration and Setup.

 How to Connect Mikrotik DISC Lite5 to PC/Laptop.

Connect DISC Lite 5 Lan port to PoE Out of PoE injector comes with the Mikrotik device, Lan port will connect to PC/Laptop Lan port.

Mikrotik Default IP Address is 192.168.88.1 and the default username is admin without any password. So just put 192.168.88.x series ip address in your Pc/Laptop Lan port to continue device configuration.

 How to Connect Any Wi-Fi without Password from Mobile?

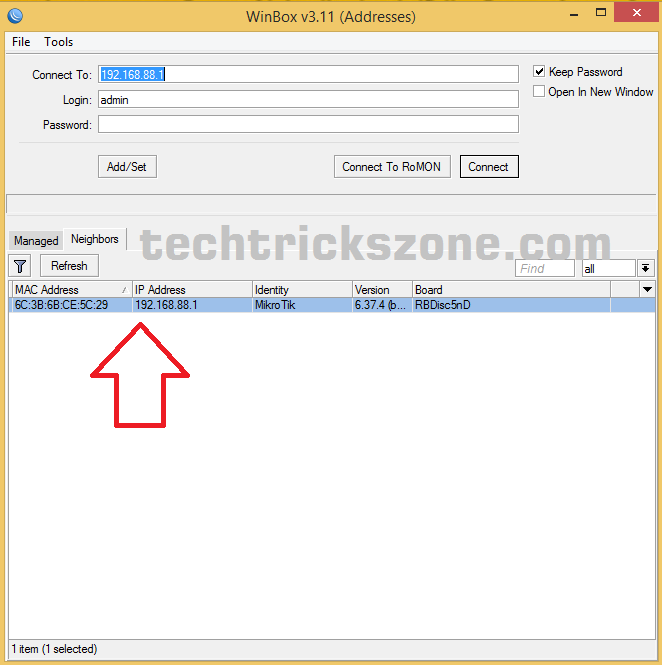

How to Open Mikrotik DISC Lite5 in Winbox

Before start configuration, Mikrotik DISC Lite 5 Make sure you have downloaded the latest version 3.11 Winbox. After Download Winbox latest version open winbox and wait for the Mikrotik device-detect on winbox device list.

Mikrotik Winbox latest version download from Device offline



Select the device and click connect button

The device will open in default configuration setting click ok to close.

How to configure Mikrotik DISC Lite5 without winbox



The configuration of Mikrotik DISC Lite5 PTP  in Bridge mode.

Device 1 Configuration

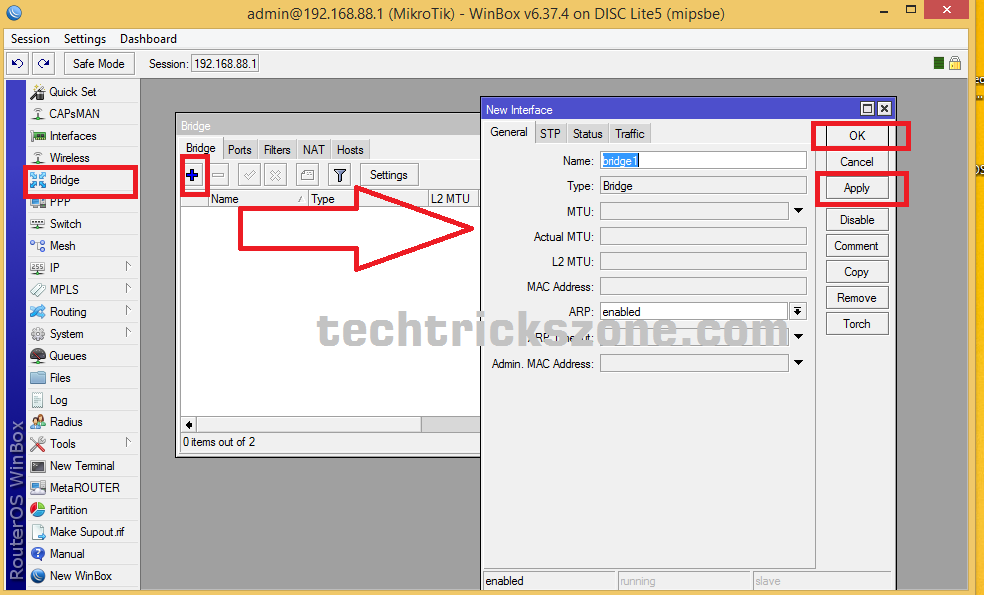

After login DISC Lite 5 in winbox you need to add bridge and port from left side menu option Bridge.

Click on + (plus) button and click Apply ok

Add birdge Port to mikrotik device



Adding Port in Mikrotik DISC  Lite 5:

You required to add two port in Mikrotik device, one port for ether and one port for WLAN. Bridge both port.

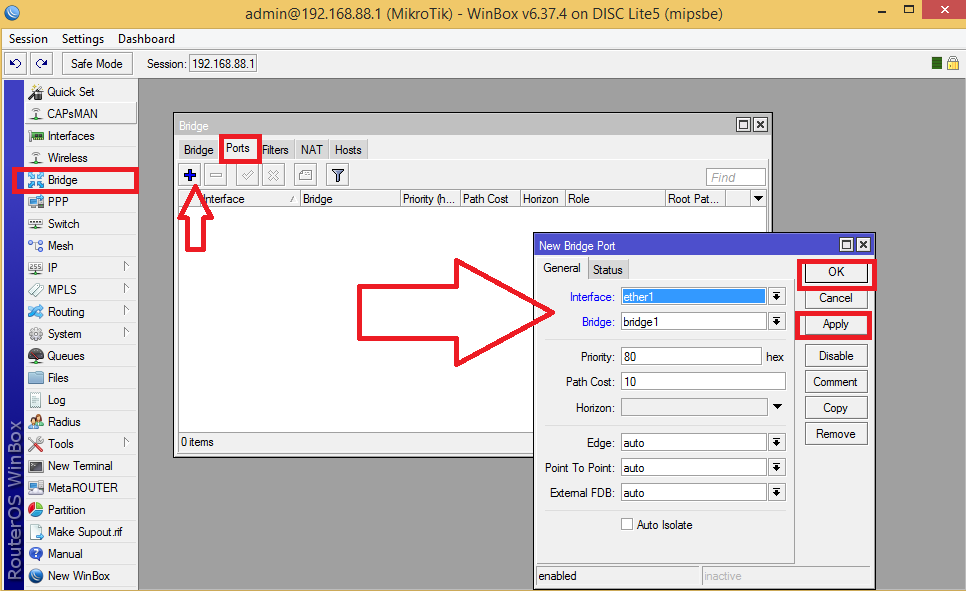

Adding Ether Port: Mikrotik DISC Lite5

Click port tab from bridge option click +(plus) button to add port.

Choose interface ether1 and bridge Bridge1. Click apply ok to save Ether1 port

mikrotik routerboard configuration tutorial



Adding WLAN port: Mikoritk SXT Lite5 and Mikrotik Disc Lite5 configuration

Click + (Plus) button again from the port. Choose interface WLan1 and Bridge Bridge1

Mikrotik SFP configuration

  • Setup and Login MikroTik LGH Series PTP/PTM

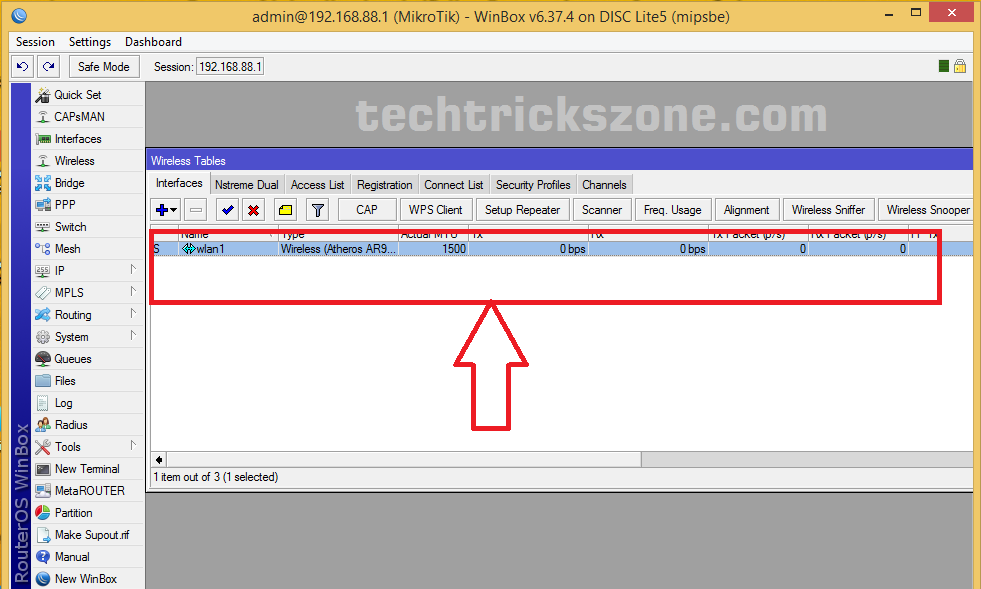

Mikrotik DISC Lite5 Wireless Configuration:

For Wireless configuration click Left side menu Wireless option, you will get wireless interface detail in green color click on the wireless interface to configure wireless.

Mikrotik Wireless Configuration for Point to Point

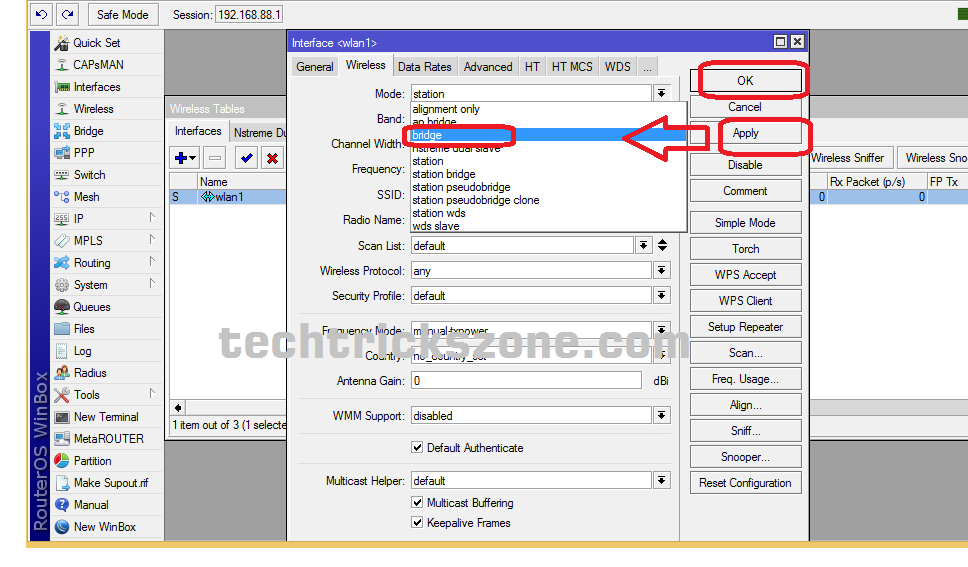

After go to Wireless follow the settings below.

Mode: bridge

Band: make it default

Channel width: choose 20/40 for auto

Frequency: you can choose according to your area interference

SSID:  change to your choice (network name will show you in second device scan to connect)

Click Apply

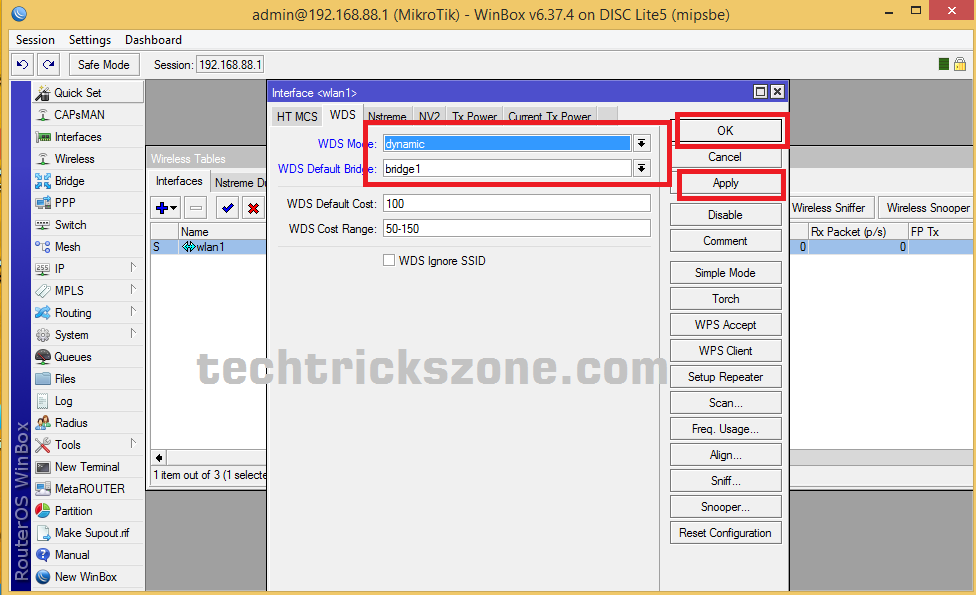

Enable WDS mode in Mikrotik DISC Lite5 :

Click on WDS tab from Wireless settings and select WDS mode Dynamic and WDS Default Bridge “Bridge1”

mikrotik wds wireless modes

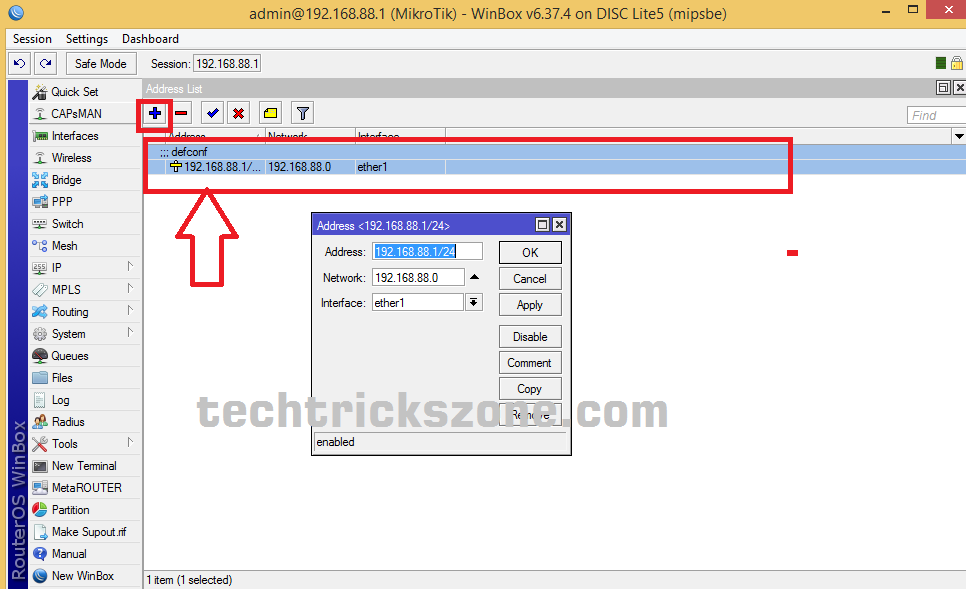

How to Change IP Address in Mikrotik DISC Lite 5 from Winbox and Web

Click Left Side Menu “IP”  and submenu click on Addresses.

mikrotik ip address command

For Adding new IP Address Click on the blue +(plus) button and add ip address

For Changing the default IP address double click on the IP address you want to change and you will get popup menu about IP Address details to change IP and click apply ok



mikrotik add secondary ip address



Related Post:

  • How To Change Default Mikrotik Hotspot Login Page with your own Design
  • Mikortik CCR  Series Hotspot Configuration  with Winbox
  • Mikrotik CAPsMAN Wireless Controller Configuration and Setup

 Mikrotik Disc Lite5 configuration Video tutorials
