Netgear WNR614 N300 Wireless Router Setup and Configuration

Netgear N150 and N300 is a SOHO Wi-Fi router for indoor use. Its provide a wide range of indoor Wireless product such as Wi-Fi Routers, indoor Switches, Wi-Fi repeaters, Enterprises Wi-Fi Router, Enterprises Wi-Fi controller, Enterprises Switch and Network Accessories solution. This post basically describe a configuration manual for many Netgear Wi-Fi router model which comes with same Web interfaces, This Post will help you if you have one of the model of Netgear N300 WiFi indoor router from below list. Netgear WNR614 N300 Wireless Router Setup and Configuration also support for below models.

Netgear JNR1010v2,Netgear JWNR2000v5,JWNR2010v5,WNR614,WNR618

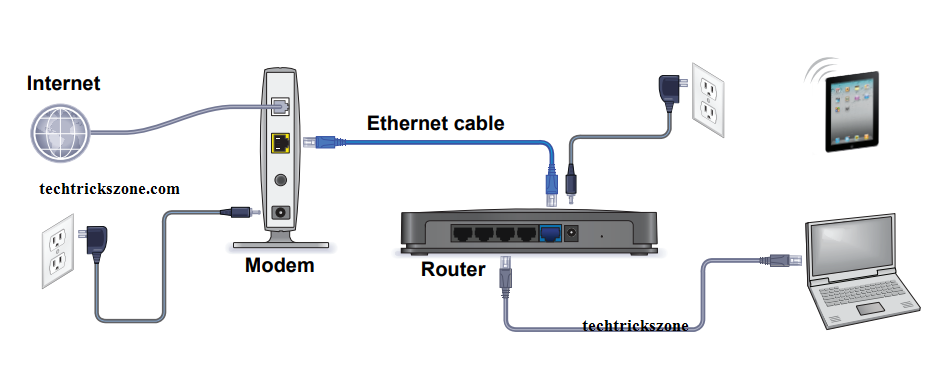

Netgear N150 and N300 Wireless Router connection Setup Diagram

This Diagram belongs to all Wi-Fi routers to connect with the internet. You can use this diagram for any brand Wi-Fi router connection setup. In this post, this diagram helps you to connect your Netgear WNR614 N300 Wi-Fi router with your internet service provider and configuration for your home and office.

Connect your Netgear Router WAN port to your Modem or internet cable coming from your service provider. Out of 1-4 LAN port connects to your Laptop or Desktop. Make sure you have connected Power Adapter comes with Netgear Wi-Fi router box. After the proper connection of your Wi-Fi router, you can proceed to the configuration part.

netgear wifi router configuration step by step
Netgear  Wireless Router Setup and Configuration


Netgear WNR614 N300 Wi-Fi Router Default   Login Settings.

If you are going to configure your fresh new Wi-Fi router then you can also find the Default setting backside of your Wi-Fi router. If you are going to reconfigure your old Netgear  N300 Wi-Fi router then this post will help you to get Netgear Default Settings to access your Wi-Fi router.

Netgear WNR614 Default settings.

Login URL: or http://www.routerlogin,com

Default Username:  admin

Default password: password.


Before Open this URL to browser make sure your  PC/Laptop LAN settings in DHCP mode. you can get the DHCP configuration manual here  “How to make Laptop LAN in DHCP mode”.

Launch browser and open default Netgear router ( or ) use default login username and password as given above steps.

Netgear WNR614 Wi-Fi router configuration in Manual Mode.

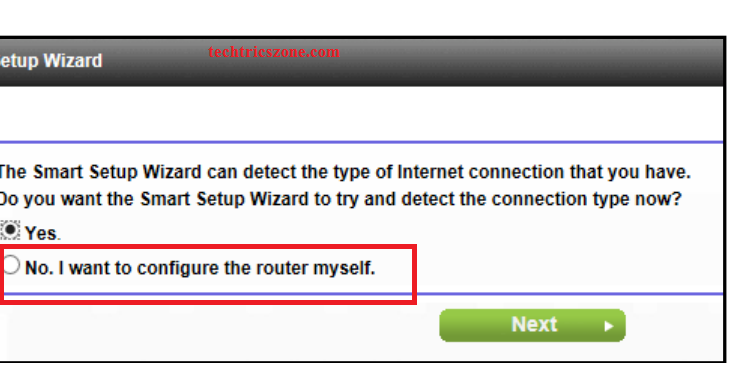

After login your Netgear router you must choose the option No, I want to configure the router myself. After choosing this option you can configure your router directly from router option. Click Next you will directly go to the Basic page.


netgear n300 wifi router configuration

Netgear Wi-Fi 150Mbps and 300Mbps Wi-Fi Router WAN Configuration

Before Proceeding to WAN configuration make sure your internet service type. I mean your internet work on Static IP or required PPPoE login to start the internet. You can contact your internet service provider to get your internet type details and information about username and password.

If your internet types Static then get all IP address Gateway and DNS information from ISP. If your internet required username password then sees the Netgear WNR614 Wi-Fi router PPPoE configuration.


Netgear  WNR614 Wi-Fi router WAN configuration in Static IP address

This option work for you if your internet service works on static IP address without using any username and password to dial your connection. You need Static IP address, Subnet mask, Default gateway and DNS information to configure in this option. If you have all details then follow to option given below to configure your Wi-Fi router in Static mode.

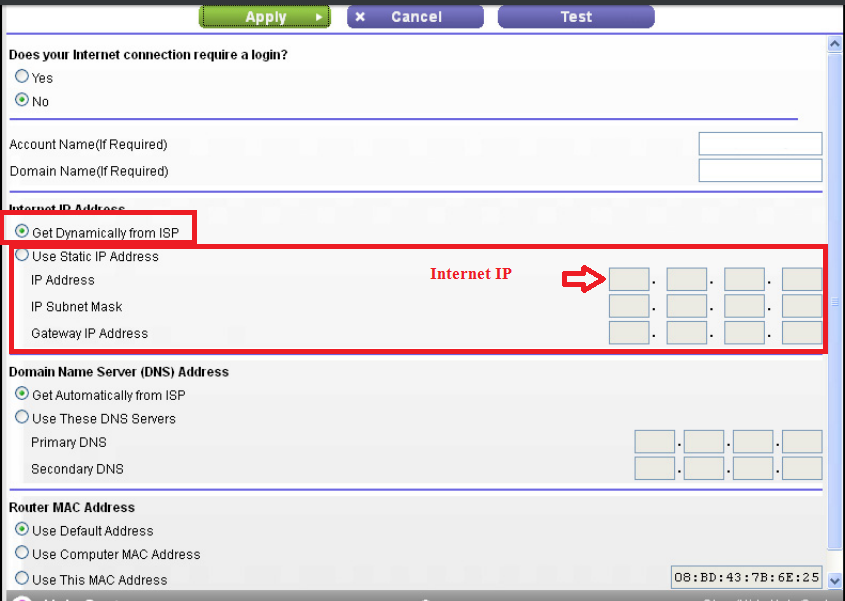

ADVANCED > Setup > WAN Setup

netgear wifi router connected but no internet


Use Static IP Address: Choose this option if you want to configure in Static mode.

IP Address: fill the IP detail in Box given by your ISP

IP Subnet: use the same get from ISP

Gateway: this will also provide by your ISP.

Domain Nameserver (DNS) Address: if you get DNS information from your ISP the use second option. Use these DNS servers, If you didn’t get from ISP you can choose the first option Get Automatically from ISP.

Click Apply to save settings.


How to configure your NETGEAR router for cable internet connection

Netgear WNR614 N300 Wi-Fi router WAN configuration in PPPoE Mode.

This option for only if your internet requires a dial-up(PPPoE) connection to establish your internet. Please confirm from your service provider for your username and password if you don’t know about it.

After getting the username and password follow the given step to configure your Netgear router in PPPoE mode.

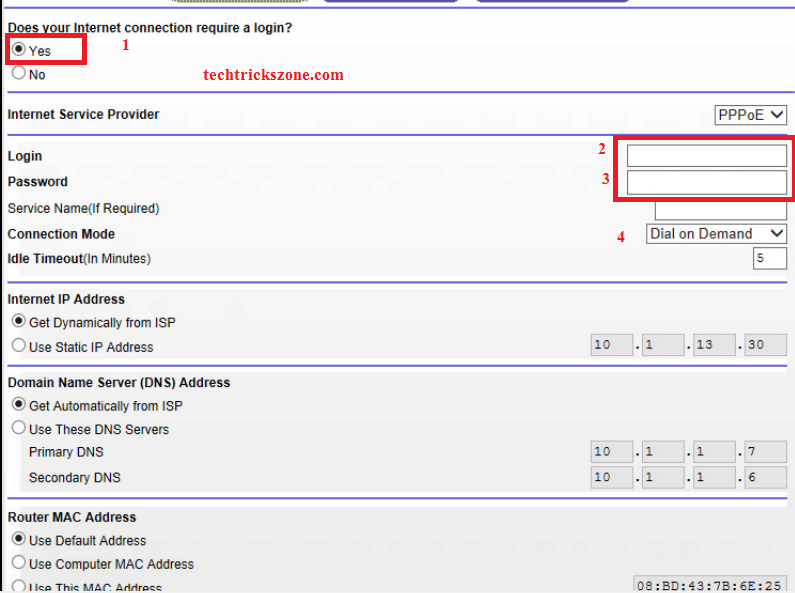

 Does your internet connection require a login

Click on yes option

 Login: use your username got from your ISP

Password: use password for same got from ISP

 Service Name:  optional (you can use if you know)

Connection Mode: click Auto Dial for always dial.

Ideal Timeout: you can increase this time for dialing auto disconnect on ideal mode.

Click Apply Button to save changes.

netgear router wifi connection not enabled


Netgear Wi-Fi router LAN and DHCP server Configuration guide

To Avoiding un-authorize access of your Netgear Wi-Fi routers its recommended to change the default IP Address. Any router default Settings details can get from the internet so make your Wi-Fi network secure you must change your Wi-Fi router Default IP address to increase one step of the security layer. These Steps will guide you how to change Netgear 150N and 300N Wi-Fi router LAN IP Address.

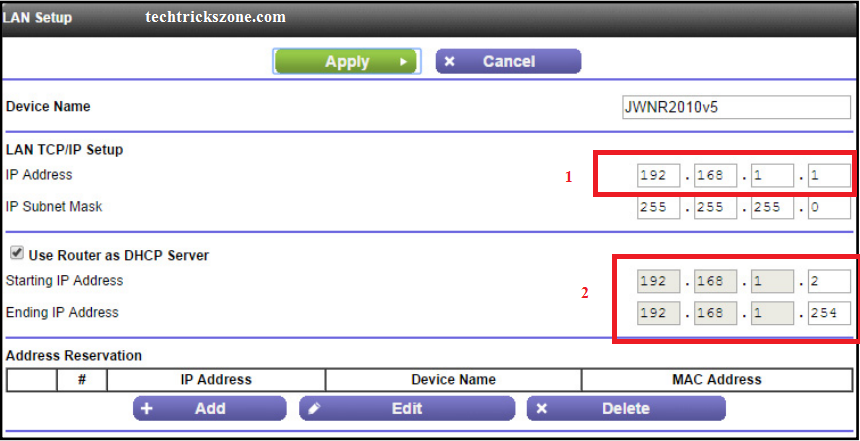

ADVANCED > Setup > LAN Setup

netgear n150 wifi router configuration

Device Name: you can change your Router Name in this box.

LAN TCP/IP Setup: This option will contain LAN information.

IP Address: (change this Default IP to other IP of your choice) after changing this IP address you can access your Wi-Fi router with new IP Address you have changed.

Use Router As DHCP Server: This Option for DHCP server Enable and Disable in Netgear Router.

Starting IP Address: the user starts IP address in this box. (This IP will be starting IP providing by DHCP server to the user.

Ending IP Address: This IP will be last of providing by DHCP server.

If you have the user in your home 1-5 or 1-10 then you can use start IP and ending IP this option will also protect your Wi-Fi Network to get IP Address from an unknown user if they know your password. This option we can assign the total number of user for internet use in home and office.

Netgear 300N Wi-Fi Router Wireless Configuration Guide

This option is the most important part of configuration any Wi-Fi routers, because if Wireless configuration will weak then it can be risky for our internet and network to access from hackers. This part will contain all information about Wi-Fi security, Wi-Fi name, Wireless broadcasting settings, channel settings, and speed settings.

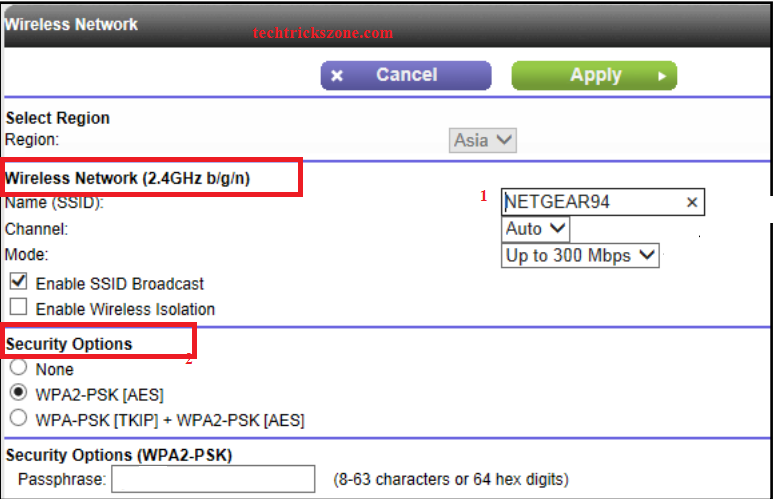

Click on Wireless Tab

netgear wifi router change password

Wireless Network (2.4GHz b/g/n): This option contains details about Wi-Fi Network Name(SSID) Channel and  Broadcast settings.

Name (SSID):  Type your Wi-Fi name here

Channel: Keep it Auto if using only one router set 1,6,11 channel if using more than 1 Wi-Fi router in the same place.

Mode: Enable SSID Broadcast should Tick if it will not tick then your Wi-Fi network will be hidden.

Enable Client Isolation: This option will help you to communicate two users connect in same Wi-Fi router will disallow to access each other data.

Security Option: This is the very important setting for any router because this security will help our router to protect from hackers.

Non: this option for no password (unsecured Wi-Fi network)

WPA2PSK (AES): This security type support for AES key method.

WPA-PSK (TKIP) +WPA2PSK (AES): this security support both AES and TKIP key method so these Security types highly recommended to protect Wi-Fi Network. Use this option and type your Wi-Fi password in the box (use special character Alfa numeric to make the secured password).

I hope this tutorial helps you for Netgear WNR614 N300 Wireless Router Setup and Configuration first time and also for the old router. if you are facing any type of problem please comments or email from contact us page. I will try to reply to you within 24 hours.
