UBNT UniFi Controller Software Setup and Configuration First Time

July 2, 2017 by admin

Simple user guide of Unifi Controller installation in Windows and Mac PC. see step by step how to install UniFi Controller and Wireless configuration with AP discover.

UBNT Unifi Controller Software Installation and Setup

Unifi controller is a UBNT Proprietary software controller for Wireless Device configuration and managing for the centralizing point. This Unifi Software controller free available in UBNT official site. If you using UAP Series already or you are planning to buy UAP device then you required this controller software which allows you to configure and manage Unifi AP for single point, this software also provides feature such firmware up gradation, cloud access, real-time user statics monitoring, real-time data monitoring, currently Unifi 5.4.16 version available for Windows Mac, Debian, Ubuntu, Linux, Android, and IOS. UniFi Controller Setup and Configuration Manual you can also download from UBNT Website.

  • How to Connect Any Wi-Fi without Password from Mobile?
  • Single band vs. Dual Band Wi-Fi Router! Which one is best?

If you are stuck with no technical knowledge about UBNT product configuration start-up then after reading this post you will become an expert of UBNT product. This post will guide you step to step on how to install UniFi Controller software 5.4.16 for windows, mac, Linux and androids platforms.

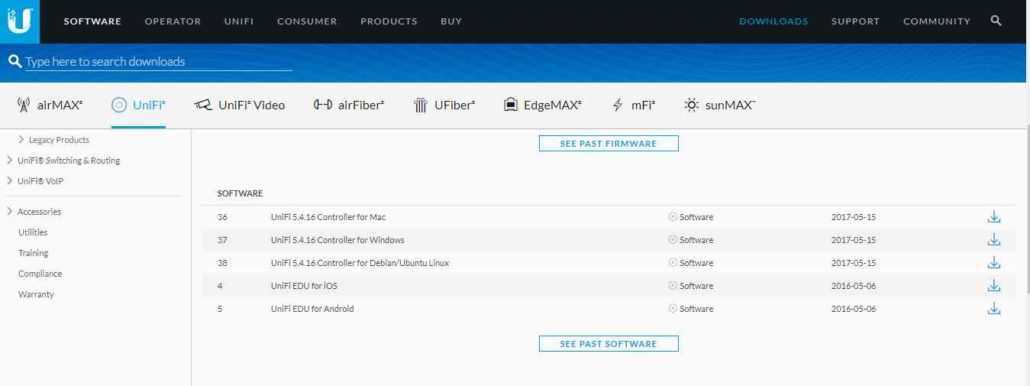

UniFi Software Controller 5.4.16 Free Download

As I already mention Unifi Controllers is free of cost available on UBNT official website. This Unifi Software controller only works with UBNt product so do not was your time trying with any third-party Wireless products.
Click Link Below to Free Download UniFI 5.4.16 Now
1 UniFi 5.4.16 Controller for Mac
2 UniFi 5.4.16 Controller for Windows
3 UniFi 5.4.16 Controller for Debian/Ubuntu Linux
4 UniFi EDU for iOS
5 UniFi EDU for Android

unifi controller connect to existing network



Ubiquiti AP Controller Setup & Installation in Windows

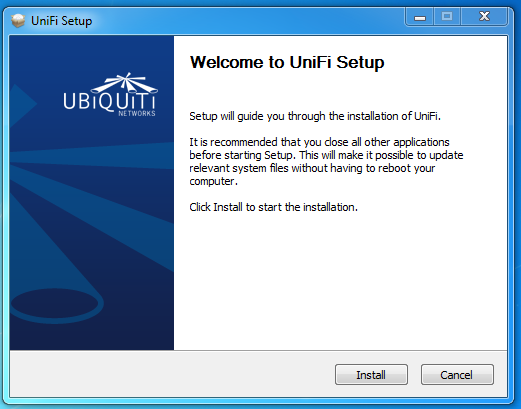

After Downloading UniFi 5.4.16 from UBNT website double click on the software to start the installation.

Click the Install button to start the process.

unifi controller startup failed

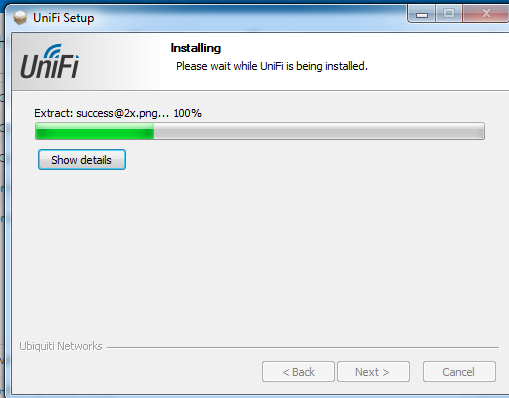

Wait to finish Process until you get Finish option.

unifi controller default password

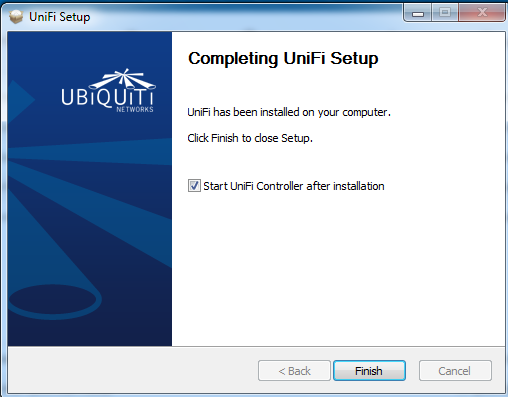

Click Finish Option  After Finish this option Unifi Controller software will install in your PC /laptop.

unifi controller does not launch browser

  • How to check who is using your Wi-Fi from Mobile (3 Way)

UniFi Wireless Controller Set up and Configuration in Windows

After installation, open Unifi software windows will ask you to allow network access permission click “Allow access” button to process controller software for proper open. If you click Cancel then windows firewall will block your unifi controller software.

unifi controller configure dashboard

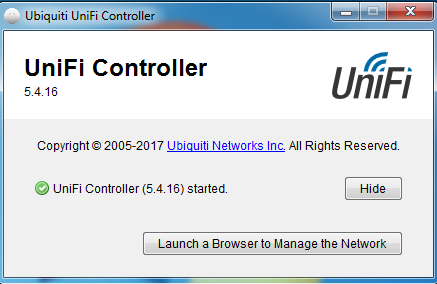

Click Launch a Browser to Manage the Network in UniFi Controller 5.4.16

how to install unifi controller on ubuntu

UniFi Controller 5.4.16  Your Connection is Not Secure error (Solved)

If you get uses an invalid security certificate error (SEC_ERROR_UNKNOWN_ISSUER) in your web browser when launching UniFi controller software then you have to add a confirm Exception in the browser setting



  1. click on the Advanced button
  2. Click Add Exception button

unifi controller install ssl certificate

You will get pop-up windows for Security to confirm Exception Click Confirm Security Exception button in the bottom.

unifi controller update

UniFi Controller Access Setup Wizard and Configuration

On first time installation, you have to configure controller software with the given setup wizard.

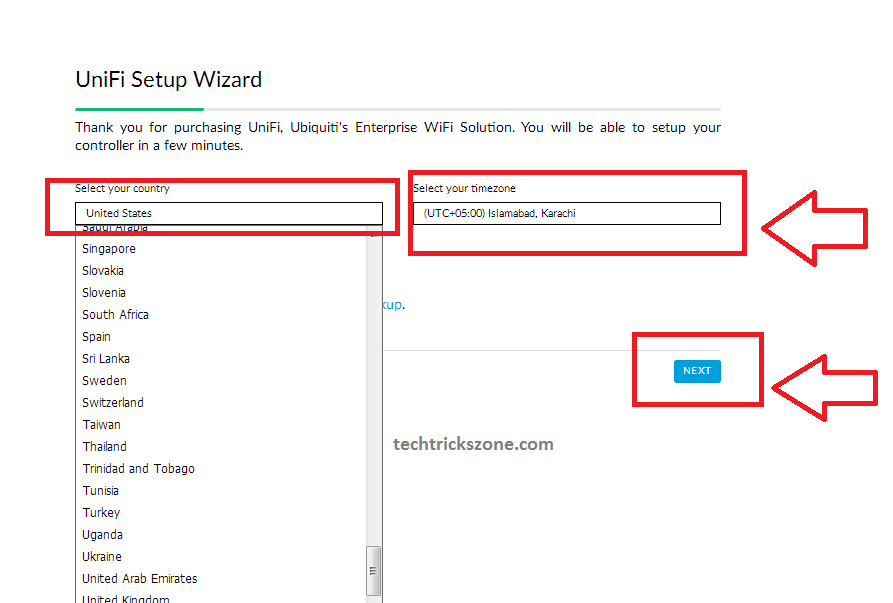

UBNT Controller software Country and Time Zone Setting

Select your country and time zone from the given list and click the Next button in the bottom

unifi controller forgot password

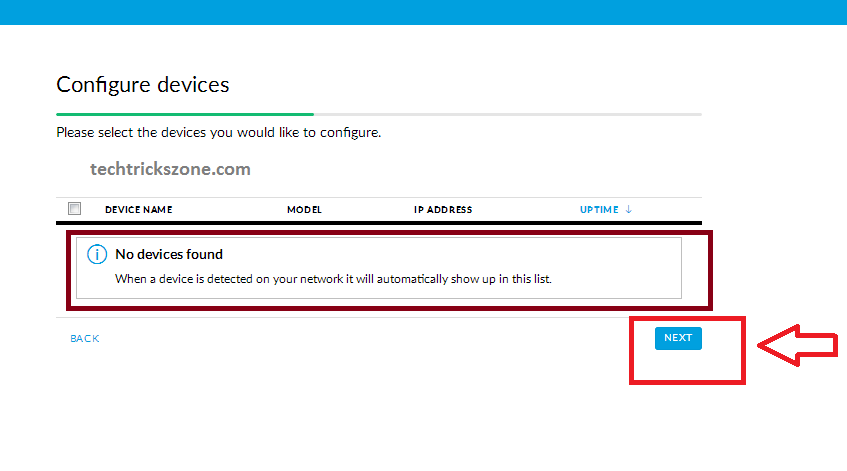

UniFi Controller AP Discover Status

If you UniFi Devices Connected during your UniFi controller setup wizard then the controller will detect your AP, if you plan to connect device later then click Next

unifi controller guest portal

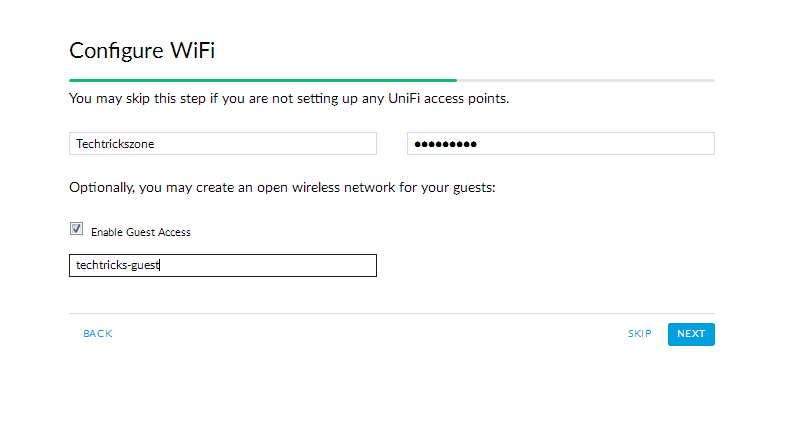

Setup Wireless Settings in UniFi Controller

You can skip this option if you want to configure later.

Type your Network Name in SSID box and password in the security box.

Enable Guest Access: if you want to add option id for Guest Access then click on Enable Guest Access and put SSID name for your guest network and click Next

unifi controller hotspot

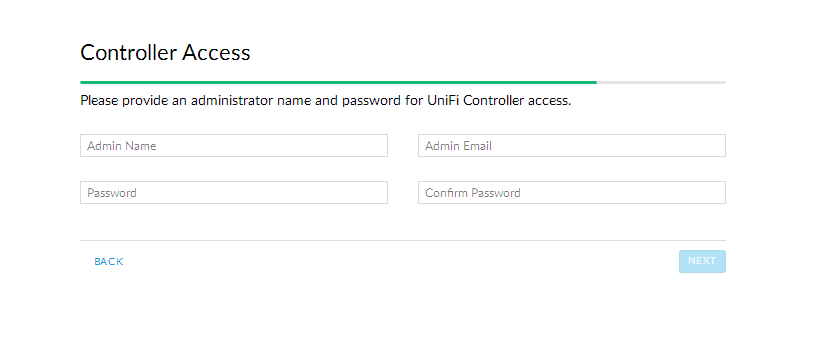

Ubiquiti Network Controller Access Username and Password settings

You must configure the Administrator username and password to secure your controller software from an-authorize access. Follow option given below to set UniFi Controller software username and password configuration.

Admin Name: This will be the username for login UniFi controller Software

Admin Email: This Email will use for password recovery if you forgot the password.

Password: UniFi Controller Login Password.

Confirm Password: Confirm UniFi Login password.

Click Next after Fill-up all details

unifi controller how to adopt

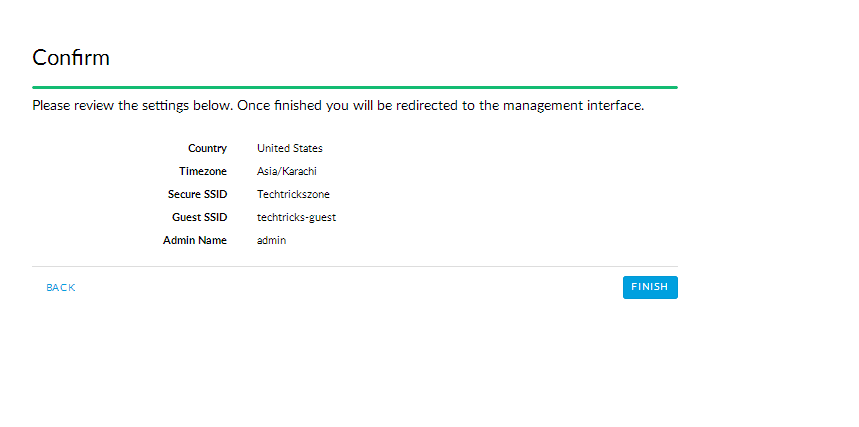

If all details correct as per your configuration after verifying click finish

unifi controller install on linux

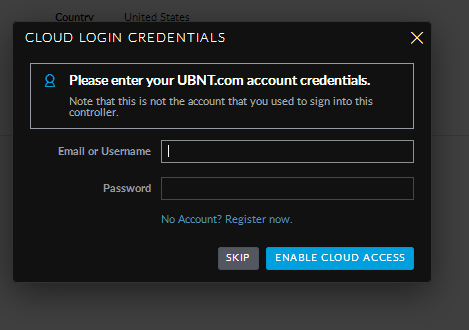

UniFi 5.4.16 Cloud  Login Credential

Please enter your UBNT.com Account Credentials

If you do not want to configure UniFi Cloud Access you can Skip this option and Proceed to UniFi Controller Login

unifi controller default password

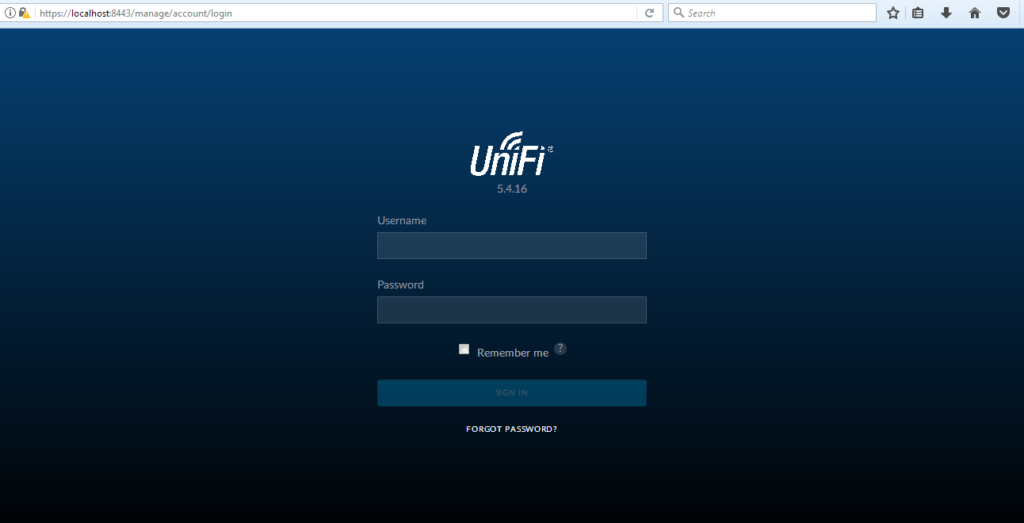

UniFi Controller Software Login First Time:

Enter Username and password you have configured in UniFi Access Wizard and Click Sign-in button

does unifi controller need to be running

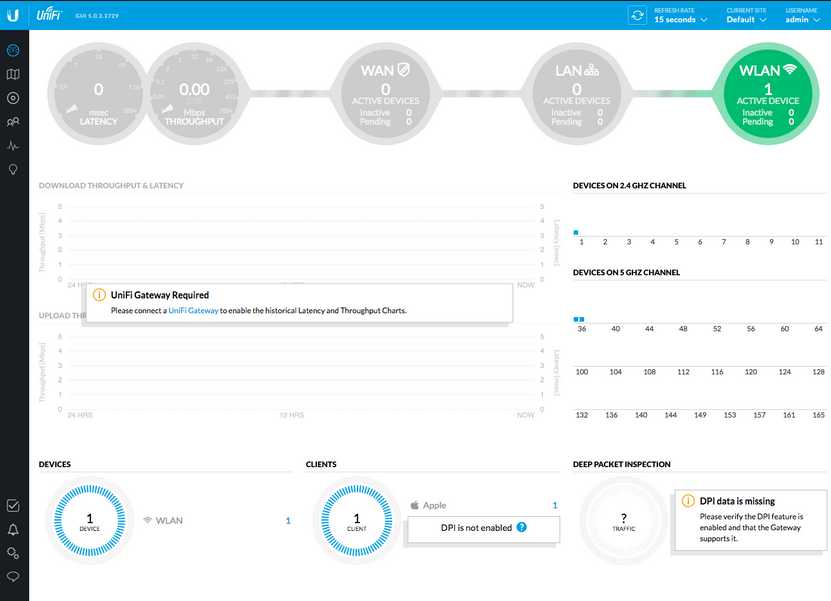

UBNT Network Controller Software Dashboard Status

Under Dashboard, you can check the all device connected status in Unifi Controller. The Connected Unifi AP will Show Green color Active status. IF UniFi controller setup no devices found in the network will show gray disabled status with 0 number.


unifi controller setup no devices found

In Unifi Dashboard you will get all the information about connected APs, Active APs, Dead APs, and Packet real-time statics monitoring. Connect client on each APs, Download and Upload statics.you can export reports from the settings menu. Or you can wait for our next post How to Export UniFi Controller Settings and Report.
