What is the use of Different Wireless Mode in WiFi Router?

What is the use of Different Wireless Mode in WiFi Router?

WiFi one of the most used and demanding technology in personal and commercial. Every one uses Wireless router for convert wired into Wi-Fi, but most of the not aware of the wireless mode available in the router. You can login your wireless router to know what WiFi mode support and how can utilize as per requirement.

While knowing about different Wi-Fi modes you can check here whether your Wi-Fi router single band or dual band. A Wireless router can be used with different modes as per requirement for different application purpose. Wireless LAN based on the IEEE 802.11 standards and modes defines the role of WiFi routers.

After understanding Different Wireless mode works you for as a wifi router buying guide while planning to buy a new wireless router. Probably everyone has a wifi router in the home but only know the repeater and AP mode. After reading this post you will understand how many types you can utilize your wireless router using different operation modes. IEEE 802.11 standard discover and developed Wireless Standards A/B/G/N/AC which you also check in mobile and any device support wireless. Here you will get details information about multiple operation modes supported by any wireless router.

The List of different Wireless Operation Mode Supported in WiFi Router

Wireless modes are very important and useful in the WiFi router to use a WiFi router as per requirements. There are some popular mode supported in wifi routers as given below. Understanding about wireless mode the best way to utilize your old wireless router laying with you.

  1. Access Point mode
  2. Router Mode (Gateway)
  3. Client (Station) Mode
  4. WISP Mode ( Client Router AP)
  5. Repeater Mode
  6. WDS bridge
  7. Ad-Hoc Mode


1: Access Point mode

what wireless modes can be used in a wds setup

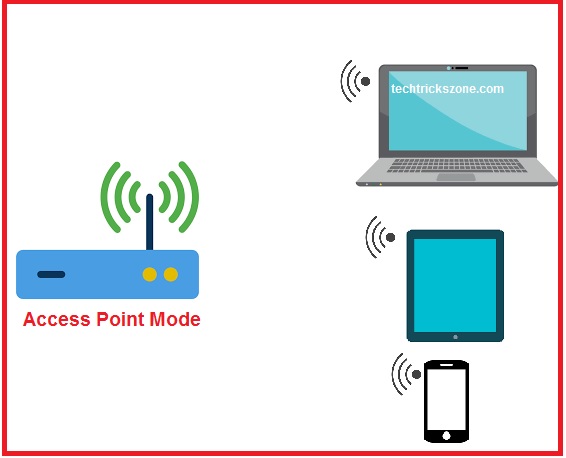

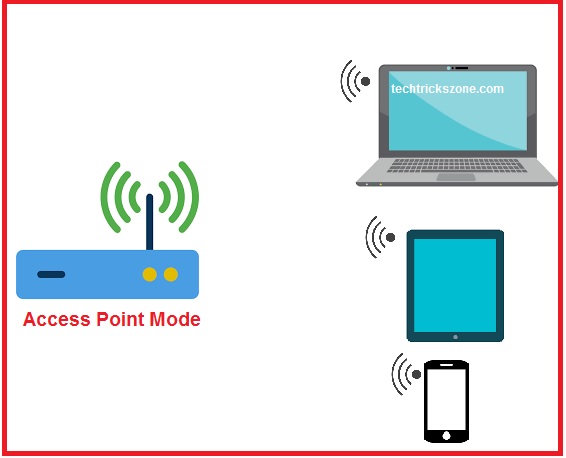

The access point also called AP in short form and in the legacy router, it is also known as Infrastructure mode. Access point mode is default mode comes in a Wi-Fi router and turn your wired internet into wireless connection using radio frequency. AP mode work in bridge mode and a centralized point to distribute your wired internet wirelessly. Read also Access point configuration parameter should follow while use Access point mode to avoid weak performance and network issue in Wi-Fi.

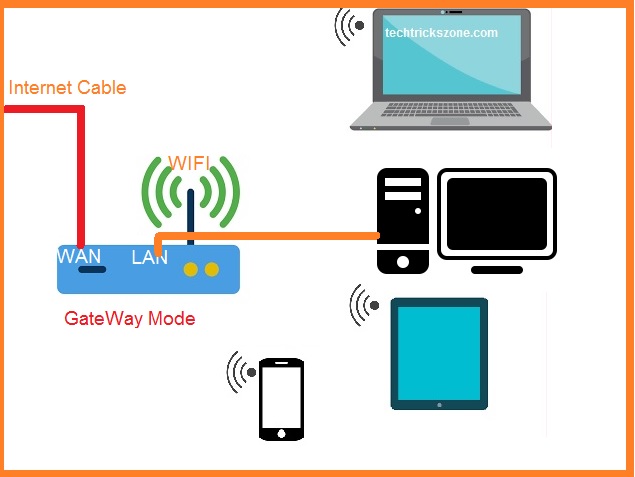

2: Router Mode

wireless modes ad-hoc / infrastructure mode

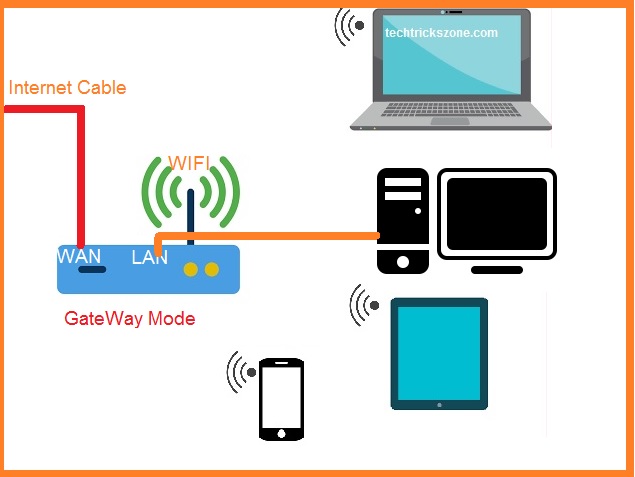

Router mode also called gateway mode in some WiFi router. Router mode uses to extend internet connection into multiple host IP using NAT protocol. In this mode Wi-Fi router used WAN port to connect the internet cable comes from the Internet service provider and user get the internet from LAN port after route in private IP address. Gateway mode also a way to keep protect your private network from the outside network and private network not accessible from the WAN networks. see here a complete guide to turning Wi-Fi router into gateway mode.

3: Client (Station) Mode

wireless mode for router

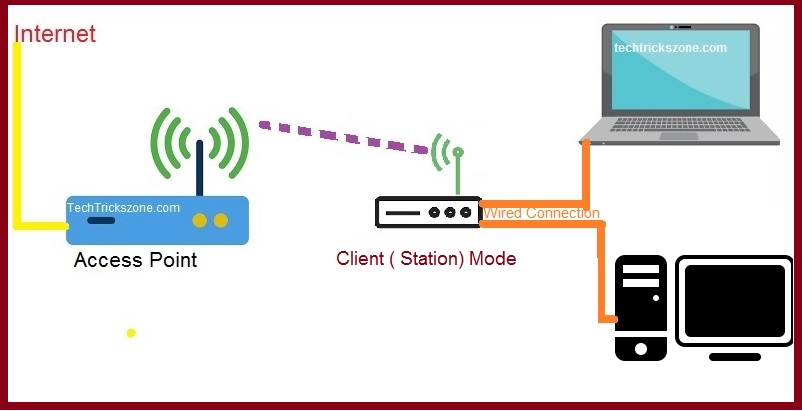

The client mode also called station mode. In this mode, the wireless router turns into the wireless receiver and connected to the access point to receive internet. In client mode internet connection share using only physical LAN port. So you can use your WiFi router into client mode to receive internet wirelessly and connect a wired device in LAN. Client mode best way to use to connect the non-wireless enabled device without laying physical cable from main internet router. EXP: you can connect DVR, NVR, Desktop, Network printer to client mode using LAN port.


4: WISP Mode (Client AP Router)

WISP full form is wireless internet service provider also called client AP router mode in some brand Wi-Fi router. In WISP mode wireless interface turn into WAN mode and also act as a client as well as router and AP. The client router AP the meaning is a single router will act as client mode to get the internet from the main Access point and Router mode will use NAT protocol to turn WAN internet into LAN Port and AP mode will broadcast the signal to connect Wi-Fi devices.  It is a combination of the Access point, router and client mode in single mode.


5: Repeater Mode

wireless mode tomato firmware

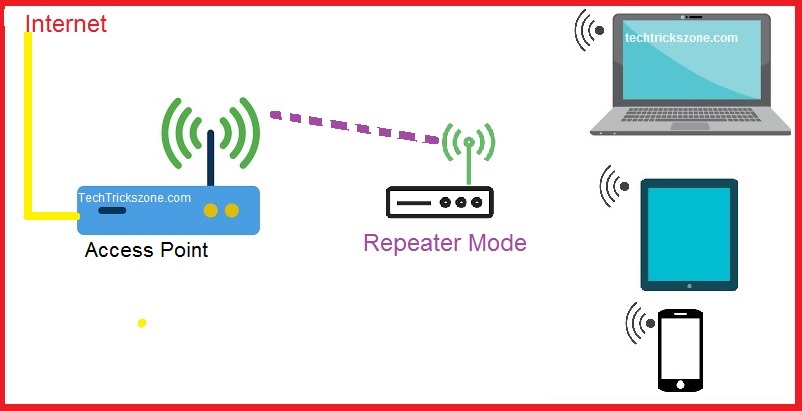

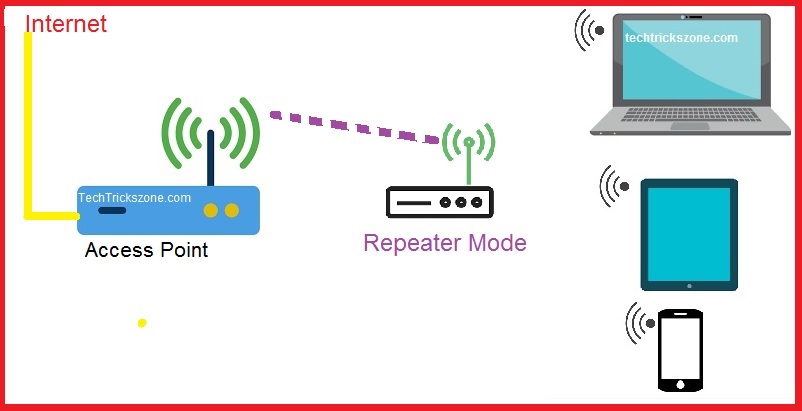

Repeater mode also called Range extender mode in some WiFi router. It is a popular wireless mode known by everyone who using WiFi in home and office. In this mode WiFi router act as a client as well as the access point at the same time. Client mode uses to get the internet from Main host wifi router wirelessly and AP mode broadcast the wifi signal and provide extended network range without using different WiFi name (SSID) and password.

Also, read complete configuration tutorial to turn your WiFi router into repeater mode to extend the WiFi signal.


6: WDS Bridge

turtle beach wireless headset modes

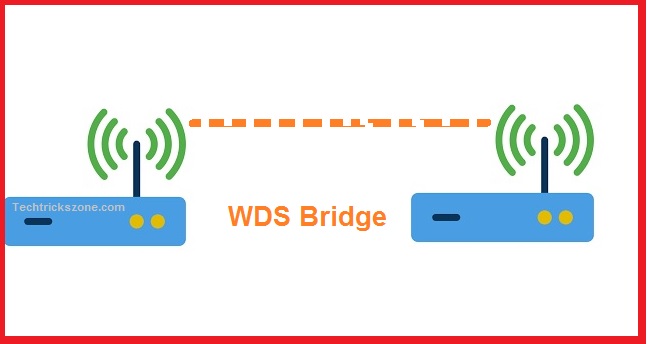

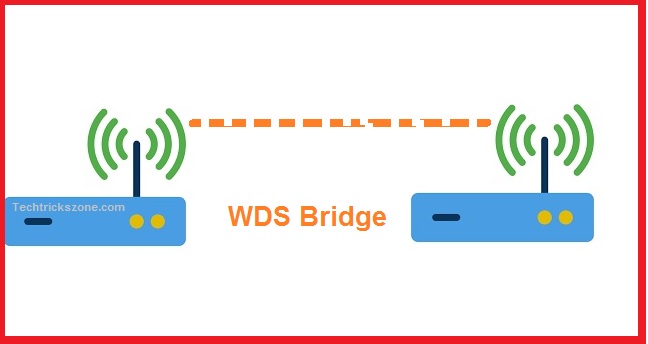

WDS full form is Wireless Distribution System. In WDS mode wireless enable the interconnection from one router to another router to extend network wirelessly. WDS mode allows connecting multiple wireless radios to extend the network using WDS bridging. In WDS mode wireless router act as transparent bridging mode like a physical cable. It is used to connect two different locations wirelessly where physical cable connection not feasible. In WDS mode you can connect two routers to extend network without connecting the physical cable. See here how to connect two wireless routers wirelessly using WDS bridge mode.

7: Ad-Hoc Mode

Ad-Hoc mode is a peer to peer connection used to connect two wireless device. Most of the WiFi router does not give ad-hoc mode as but you may see this mode in Windows PC and other operating systems.  ad hoc network does not rely on pre-existing infrastructures, such as routers in wired networks or access points in managed (infrastructure) wireless networks. It is decentralized wireless network support peer to peer connection only. The Windows operating system, ad-hoc mode use to allows computers to directly communicate with each other without a router.
