TP-Link Deco M5 Mesh WiFi System Setup and Configuration (with Picture)

TP-Link Deco M5 Mesh WiFi System Setup and Configuration for Home

TP-Link Deco M5 Mesh WiFi system recently launched for whole-home WiFi connectivity. Deco M5 home meshes wifi system with dual-band wifi router 2.4GHz up to 400Mbps and 5.8GHz support up to 867 Mbps speed. It’s the best new easy configuration product by TP-Link with Mac and Android Mobile Apps configuration. Deco Apps lets you give fingerprint monitoring of your WiFi network at your home. TP-Link Mesh system is a powerful signal strength with Mesh connectivity which will give you wireless connectivity even from one Deco to another Deco. Deco M5 comes with a 3Device single pack and its  Works with Alexa and IFTTT. see TPlink M5 WiFi System Specification below.

TP-Link Deco M5 Whole Home Mesh WiFi System Review and Specification


Ports: 2 LAN/WAN Gigabit Ethernet Ports, 1 USB Type-C port

Buttons: 1 Reset button on the underside

Antenna Type: 4 internal antennas per Deco unit ·

Wireless Onboarding: Bluetooth 4.2 ·

Flash: 32 MB ·

SDRAM: 256 MB ·

External Power Supply: 12 V/1.2 A ·

Dimensions (Dia x H): 4.7 in. x 1.3 in. (120 mm x 38 mm)



Wireless Standards: IEEE 802.11 ac/n/a 5 GHz, IEEE 802.11 b/g/n 2.4 GHz

Frequency: 2.4 GHz and 5 GHz signal

Rate: 867 Mbps at 5 GHz, 400 Mbps at 2.4 GHz transmit

Power: FCC:<30dBm,CE<20dBm(2.4GHz) <23(5GHz)

Wireless Security: WPA-PSK/WPA2-PSK


Working Mode: Router, Access Point

WAN Type: Dynamic IP/Static IP/PPPoE

: Server, Client

Quality of Service: WMM

Firewall Security: SPI Firewall

Protocols: Supports IPv4 and IPv6

Guest Network: 2.4 GHz guest network x 1, 5 GHz guest network x 1

Features: Parental Controls, 3-Year Built-In Antivirus, QoS (Quality of Service), Reporting, Assisted Setup, Address Reservation, Port Forwarding, TP-Link DDNS ·

Management: Local Management, Remote Management

AC1300 Whole-Home Wi-Fi System

Physical Ethernet port and connection setup for deco M5.
tp-link deco m5 manual

TP-Link Deco M5 Configuration With Androids and IOs Apps

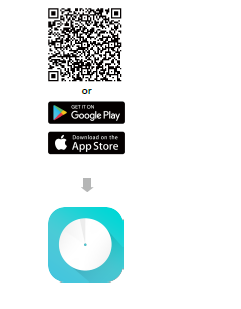

Deco M5 Configuration is very user-friendly and easy to set up with non-technical knowledge also because its user-friendly mobile application assists you to step for configuration just at your fingertips. You required Deco mobile apps to start the configuration of the Deco WiFi system. If you are an Android user you can download Deco apps from the Play store and if you are an iPhone user you can download them from the apple store. You can directly download from here just scan the barcode given below and you will get apps to download.

tp-link deco setup first time

Download Deco Android Apps Free Now

Scan QR code you will get a download page in your android and iPhone download it and create the account if you do not have any TP-Link account already.

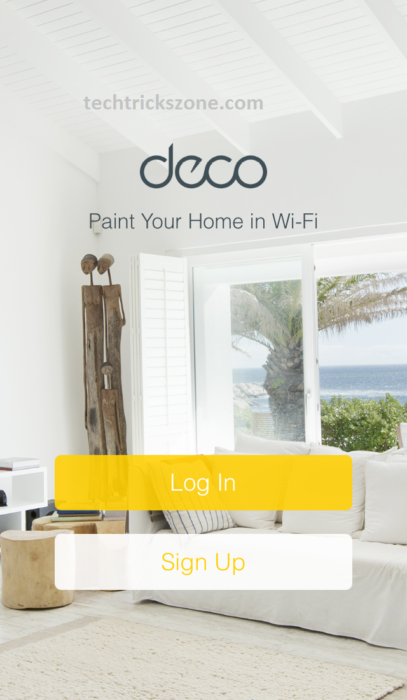

After Download open Apps and log in,

How to Factory default tp link deco ap


TP-Link Deco M5 Connection setup with Modem

Connect your Deco M5 Device to your ADSL Modem/VDSL Modem or Internet router in your home network.

p-link deco m5 access point mode

Now Open Deco Apps and Proceed to Configuration

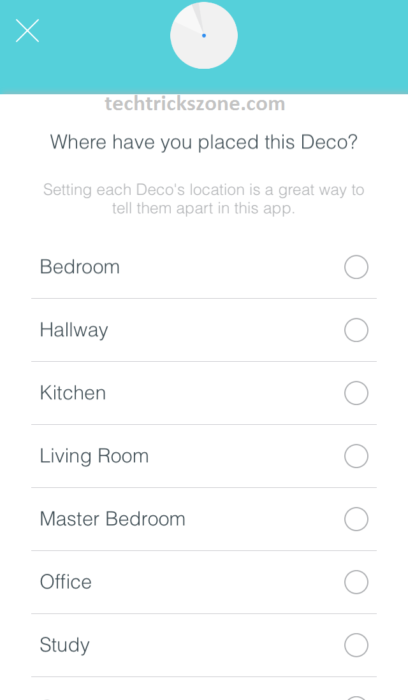

Deco M5 Location Settings with Deco M5 Mobile Application

TPlink deco m5 plus price

Choose your Deco M5 Location from List and select. if you didn’t find your location in the list just click create the location and Add your New location on the list. Select the location and click  Next.

TP-Link Deco M5 Mesh WiFi system Wireless Configuration

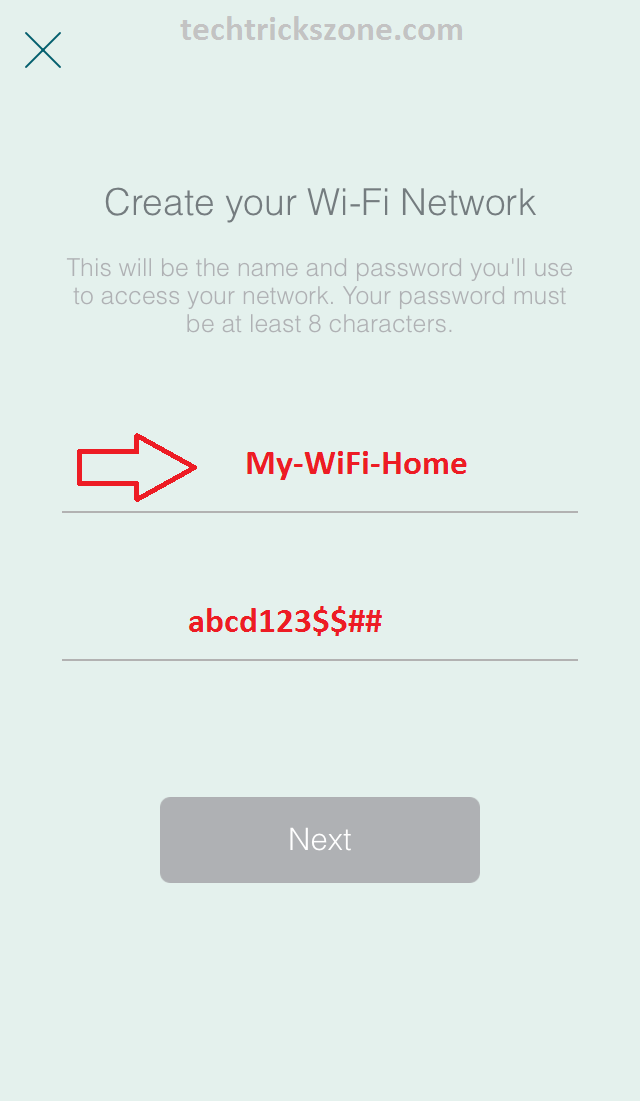

In this option you will get the option for Wireless name and Password, the wireless name also called SSID and WiFi password. This Name and password will use to connect your mobile phone and Laptop to connect your Wi-Fi network.

tp-link deco m5 reset button

Click the Next button to proceed with the configuration.


TP-Link Deco M5 Mesh WiFi system Add Multiple Device in Home

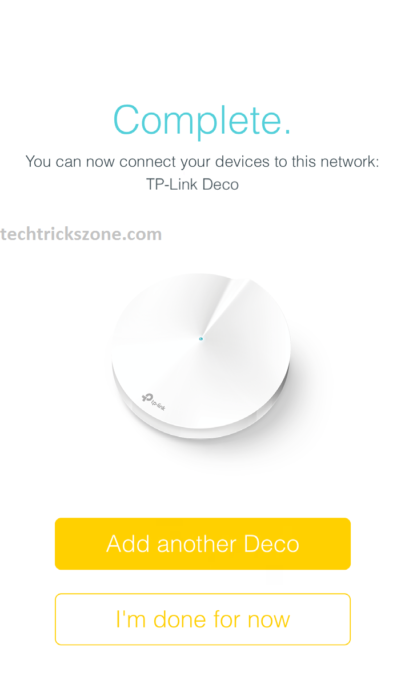

After finishing the first deco configuration you add multiple devices in the home. Just click Add another Deco M5 and proceed to the same configuration step you did for the first Deco M5 Device.

tp-link deco configure with windows

If you have only one Deco to the configuration you can press I’m done for now. You will go in the dashboard from where you can manage your Deco M5 installed in your homes.

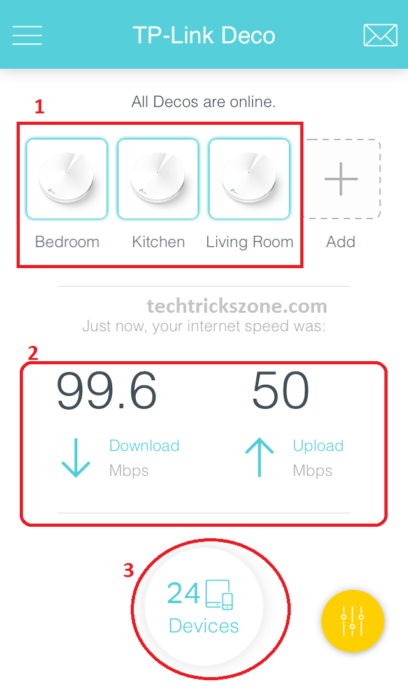

How to Monitor Online Deco M5 and total  Connected User

From Deco M5 very easy to monitor your all Deco internet, the total user connected to all deco installed in home, and Deco Online and Offline status with single windows. See details given below with pictures.

  1. TP-Link Deco M5 Online Status: if all deco devices will online then you will get “All Deco is online. But if 1 deco offline then you will get 1 deco offline with a location icon.

tplink deco m5 access point wifi configuration

  1. Deco M5 Internet Download and Upload Speed: This option will show you Total download and Uploading speed of your deco device installed in your home and office
  2. Deco M5 Total User Online: This option will show you the total number of wifi users connected to all Deco M5 devices installed in your home and office area.

TP-Link Deco M5 Mesh Wi-Fi system Guest Network Configuration

TP-Link Deco M5 Mesh Wi-Fi system secures the Wi-Fi zone for the home because it gives you the option to enable the Deco M5 Guest network for guest people in your home. Using a guest network always prevent your Wi-Fi password stolen from guest and other people who come very often to your home.

Deco M5 Guest Network Enable :

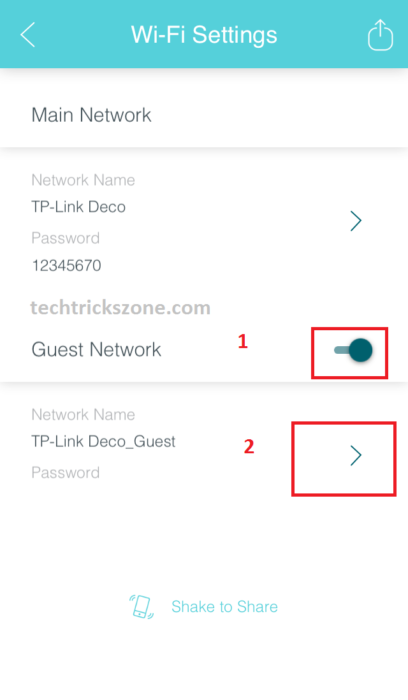

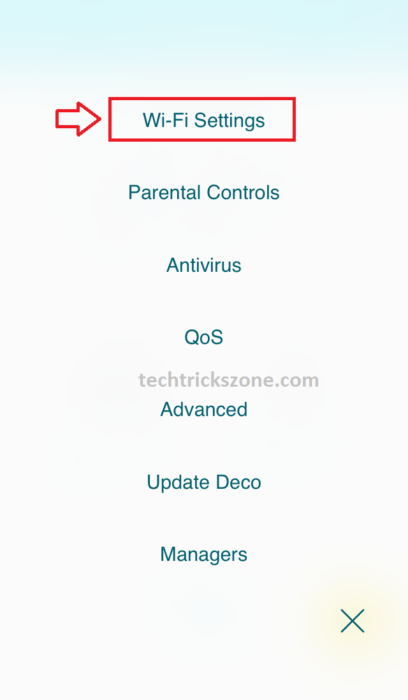

Open Deco apps and go to the Settings main menu. Click WiFi Settings from the list

How can I reset or reboot my Deco Whole-Home Wi-Fi

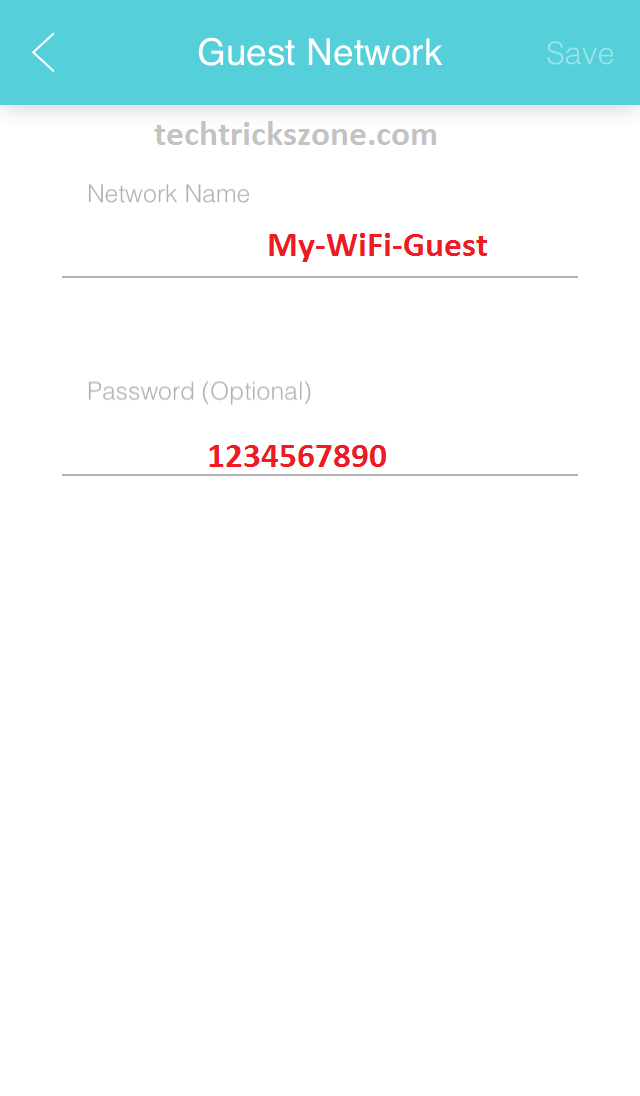

Now click the move button from Guest Network and type guest Wi-Fi network name and Guest Wi-Fi password. This WiFi name and password will use to connect your Wi-Fi for guests only.


how do i connect my tp link extender

  1. Click the button to Enable Guest Network
  2. Click an option to set the Guest network name and password.

tplink m5 guest network settings

Guest Network

Network Name: Type WiFi name for guest only

Password: Type Password for the guest network if you want to add

TP-Link Deco M5 Mesh Wi-Fi System share WiFi with Phone Shake

TP-Link Deco Mobile apps give you the power to share your Wi-Fi network by just shaking your phone. See how to share Wi-Fi network in deco apps with shake mobile.

Open Deco Apps in your Android or I phone just shake your Phone your will option to share Wi-Fi network Main Network and Guest Network. Just click the network you want to share.

Deco M5 Mesh WiFi system

Shake your phone First

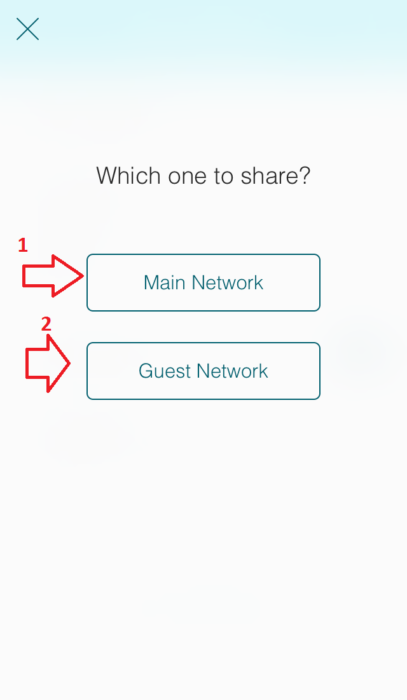

Which one do you want to share

  1. Main Network

  2. Guest Network.

Choose the network you want to share that’s it.
