TP-Link AC750 Archer C20 Range Extender Mode Configuration

July 22, 2019 by admin

Enable range extender mode in TP-Link Archer Ac750 WiFi router using simple steps. follow step by step archer C20 Range Extender Mode setup to boost wifi signal.

TP-Link AC750 Archer C20 Range Extender Mode Setup

TP-Link Archer c20 latest dual-band WiFi router with Fast Ethernet ports. In an earlier article, we have published a Simple configuration of TP-Link C20 Ac750 in Router mode. This router is a popular home Wifi router and can be used as WiFi AP, AP Router as well as Repeater mode.

If your main Wifi router does not cover whole-home WiFi range then you can turn TP Link Ac750 WiFi router into range extender mode. Just solve the weak signal issue in the home using repeater mode and boost Wifi signal up to 100%. Few steps to turn TP-Link archer Dual-band wifi router work as a signal booster. You need a physical connection with the WiFi router to configure as a Range extender. This user manual also can use if you want to turn tp-link ac1750 wifi range extender or any other AC series WiFi router.

  • The 15 Best Wireless Range Extenders to Boost WiFi signal [Updated]

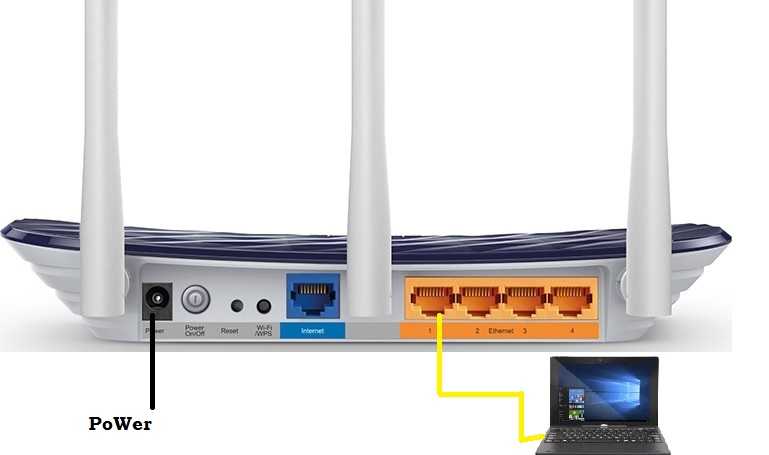

TP-Link C20 Connection with Laptop

Power on WiFi router with a power adapter comes with the device.

Connect LAN port (yellow) to PC/Laptop LAN port.

tp-link wifi extender setup

Configure Laptop / Desktop LAN IP with same series IP of Default Archer c20 IP.

TP-Link Default IP address- 192.168.0.1

Go to Laptop Network Adapter settings and configure LAN IP – 192.168.0.10.

  • How to Connect Any Wi-Fi without Password from Mobile?

Login TP-Link C20 Router

Once Connection and IP configuration are done open router web interface in the browser using default IP and log in.

Open Web browser and type “http://192.168.0.1″.

Login router with the default username and password “admin”.

  • How to Access WiFi Router if Forget the Password

TP-Link AC750 LAN IP Configuration

As most of the brand router use the same default IP address so, before configuring TP-Link in repeater mode change the default IP address.

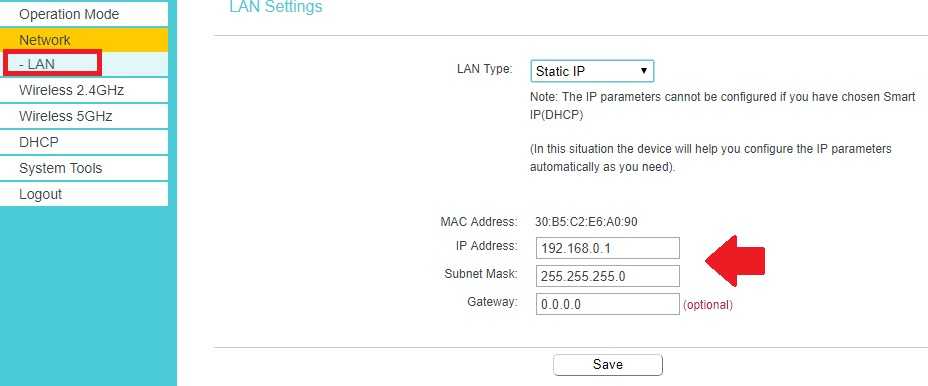

Go to Network- LAN

IP Address- 192.168.0.2 (Change IP Address in this box and click the Save button).

 tp-link ac1750 wifi range extender



Open router with new IP Address and follow repeater setup steps.

  • 192.168.2.1 Login Admin username and password

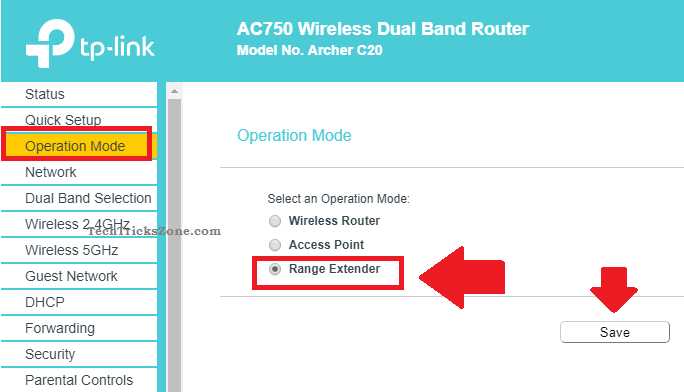

Change Operation Mode to Range Extender

Go to Operation Mode—

Select Range Extender Mode and click the save button.

tp-link ac1750 wifi range extender



Connect Main WiFi Router from Range Extender Device

Now connect your main WiFi from the repeater device.

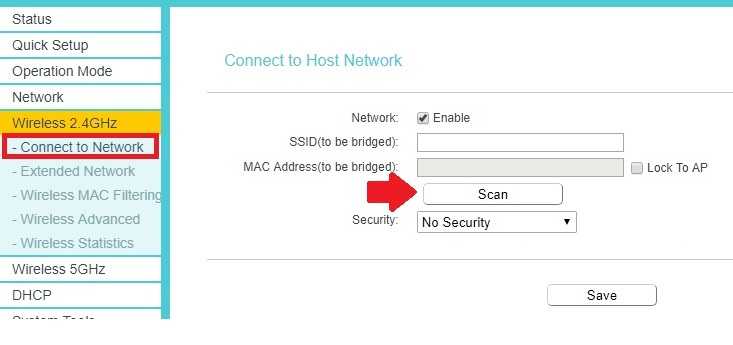

Go to Wireless 2.4 GHz -Connect to Network

Click the Scan button to find Host WiFi Name.

tp-link ac1200 wifi range extender

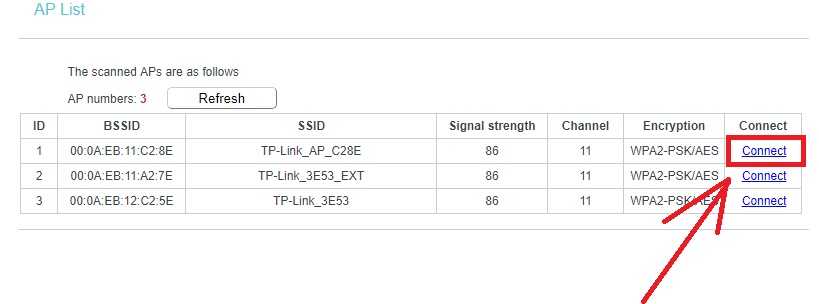

Find your WiFi name from the Scan list and click the connect button to join.

tp-link ac2600 dual band wi-fi range extender

  • Frontier Router Login IP Address 192.168.254.254

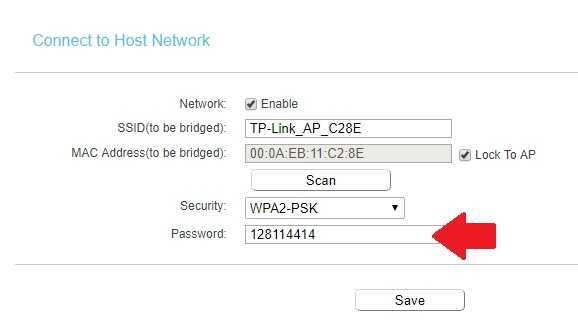

Connect to Host Network

SSID ( to be bridged)- will get Host Wifi name auto.

Click Lock to AP option.

Password: type your main WiFi password to allow connection from Range extender.

Tp-link tp-link n300 repeater setup

Click the Save button.

After a few seconds C20 will be connected to the main WiFi router. Now configure Repeater SSID.

Configure Range Extender WiFi Name and Password

You can use different WiFi name and password for Repeater SSID for both bands

Now configure WiFi name and password for repeater so you can increase signal in every corner.

  • Login Linksys Router IP 192.168.1.1

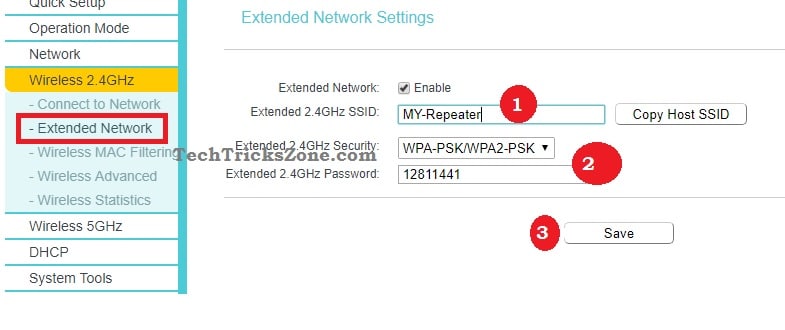

Setup 2.4 G Repeater SSID & Password

Go to Wireless 2.4 GHz- Extended Network.

Extended Network- Check box to enable.

1: Extended 2.4 GHz SSID: Type WiFi name for Repeater 2.4 GHz. If you want to use the same WiFi name as main Wifi router use Copy Host SSID option

2: Extended 2.4 GHz Security- WPA2PSK-AES

Password: type password for repeater SSID.

how to reset tp link range extender

3: Click the Save button to apply settings and proceed for 5GHz repeater WiFi Configuration.

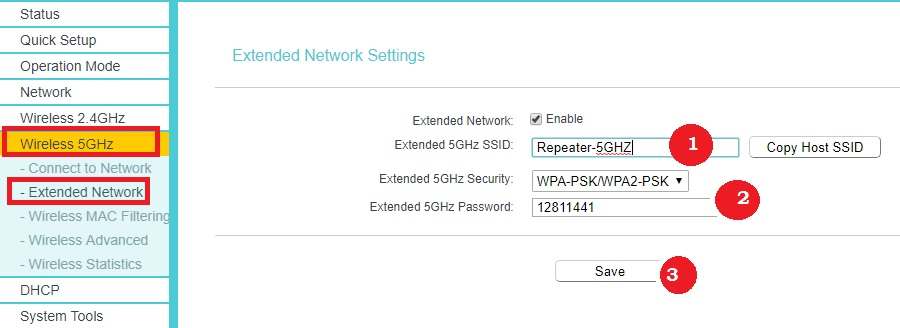

Configure 5Ghz Repeater WiFi name and Password

Go to Wireless 5 GHz- Extended Network

Extended Network- Check box to enable.

1: Extended 5 GHz SSID: Type WiFi name for Repeater 5 GHz. If you want to use the same WiFi name as main Wifi router use Copy Host SSID option

2: Extended 5 GHz Security- WPA2PSK-AES

Password: type password for repeater SSID.

3: Click the Save button to apply changes.



The router will reboot and will show your Repeater WiFi name with an excellent signal.

  • How to Add Multiple SSID in Single Access Point [Multiple WiFi Name]

WiFi Repeater Placement

To extended WiFi signal placement of range extender device most important factor to boost the signal in every place.

Range extender should get at least a 45% signal from the main Host WiFi router to provide maximum internet speed on Repeater as well.

Always find a centerline place for the Repeater device to boost the signal and keep performance like the main wifi router.

Never put repeater devices in the covered boxes like the cupboard under the table and any place where the signal can abstract.
