Netgear AC1200 Dual Band WiFi Router

Netgear R6220 AC1200 Dual Band WiFi Router Setup

November 5, 2020August 22, 2019 by admin

Netgear AC1200 Dual Band WiFi Router Setup with Wireless and wired connection for the first time. Enable guest wifi network to restrict private data access from guest mobile.

Netgear R6220 AC1200 Dual Band WiFi Router Setup

Netgear genie R6220 Dual-band WiFi router with 1200Mbps WiFi speed and Gigabit Ethernet ports. AC1200 Wifi router physical 1 gigabit WAN port and 4 Gigabit LAN port for wired connection. 1 USB port can use for network storage and printer sharing purpose. The R6220 wifi router having all security feature to keep protect wifi networks such as firewall, parental control, and guest wifi network options.

  • How to Add Multiple SSID in Single Access Point [Multiple WiFi Name]

Netgear AC1200 support as range extender mode, and Access Point mode. Router fully supported all routing and networking features such as VPN, port forwarding and others. In this post, you will get simple step to setup Netgear r6220 dual band wifi router for PPPoE and Static internet type. You can enable Guest network in the same router to prevent accessing private data for guest and visitors in the office.

  •  Netgear WNR614 N300 Wireless Router Setup and Configuration Guide.

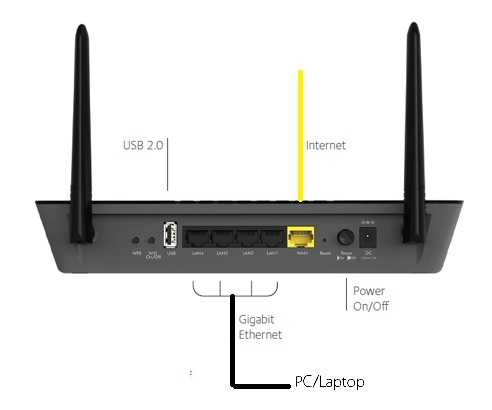

Netgear AC1200 WiFi Router Physical connection

To access Netgear web interface connect LAN cable to LAN port (1-4 black). Connect Internet cable to WAN port (Yellow).

Use power adapter comes with the package to power on the device.

netgear nighthawk ac1750 smart dual band wifi router (r6700) setup

Netgear AC1200 Dual Band Router Default settings

Netgear R6220 AC1200 Default IP Address- 192.168.l.1

Default username: admin.

Password: password.

Configure Laptop/PC LAN IP Address to 192.168.l.10.

See step to configure Static IP address on Laptop/PC

  • How to check who is using your Wi-Fi from Mobile (3 Way)

Login Netgear R6220 Dual Band router First time

Once the physical connection and IP address configuration done now open Web browser and access Netgear default IP Address http://192.168.1.1.  Follow the image below.

  • How to Access WiFi Router if Forget the Password

Type 192.168.1.1  in the URL bar and press Enter key.

Select the option “No, I want to configure the internet connection myself”

Click Next button

netgear dual band router setup

Login router with default username and password as described above steps.

netgear - ac1750 dual-band wireless-ac router with docsis 3.0 cable modem

  • 192.168.0.1/192.168.1.1 Tenda Login

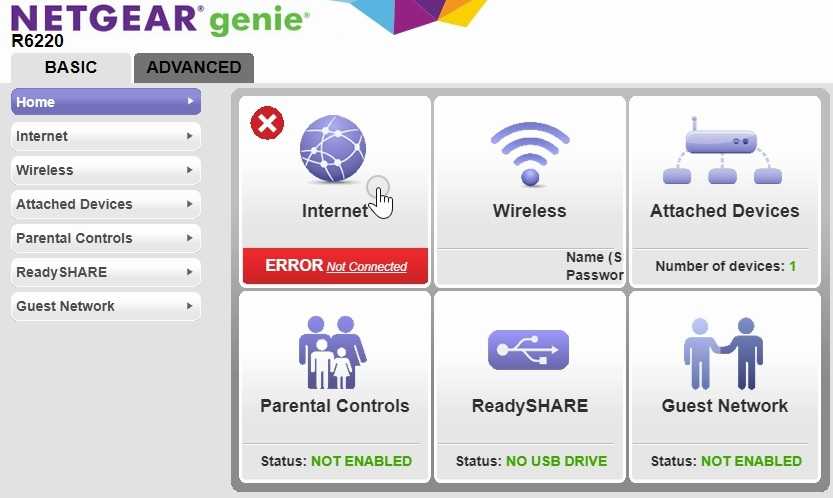

Netgear R6220 Router Status Page

Make sure you have connected internet cable in Wan port before process configuration.

You can also see Netgear Genie AC1200 default Wifi SSID and WIFI password in status page with connecting user pieces of information.

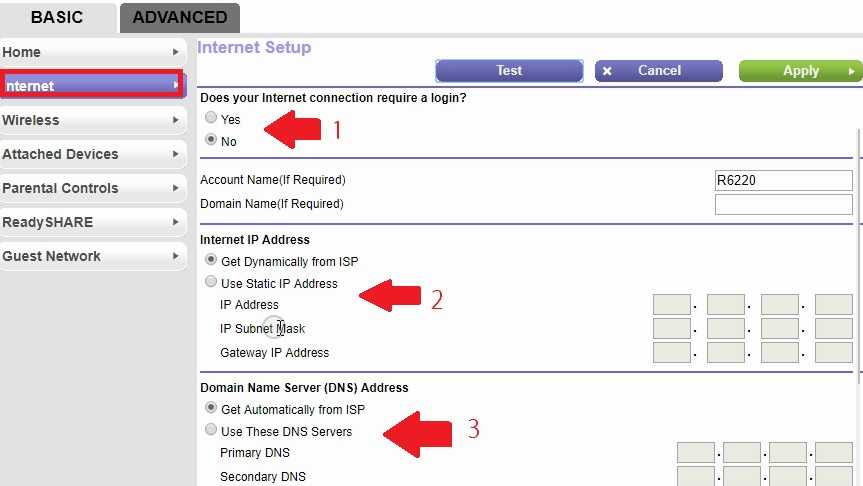

Netgear Genie WAN Configuration

Internet work on different type such as PPPoE, Static, Dynamic.

You should know about the internet type working for your internet plan. You can ask your internet provider and get the details of WAN settings.

To Setup WAN settings in Netgear Follow steps.

Go to the Internet tab.

Does your internet connection require login

If your internet type PPPoE than choose “Yes”  or if Static or dynamic choose “NO”

1: Yes for PPPoE  and No for Static/Dynamic

2: Internet IP Address:

Use Static IP Address: Type the internet static IP details got from your ISP.

IP Subnet and Gateway IP address also will provide by ISP.

3: Domain Name Server(DNS) Address

Get Automatically from ISP  or select use there DNS server if you have DNS details provided by your ISP.

netgear dual band wi-fi adsl2+ modem / wireless router

Click the Apply button to save settings.

  • Frontier Router Login IP Address 192.168.254.254

Netgear AC1200 WiFi Configuration

Netgear Default WIFi name and password must be changed before use in the live network. Netgear R6220 is a dual-band wifi router so both bands should configure one by one.

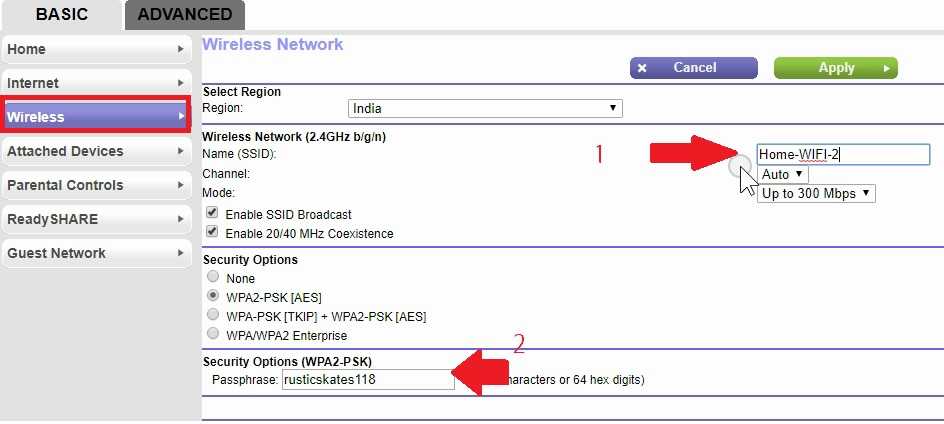

Netgear A1200 2.4Ghz WiFi Name and Password change

Go to Wireless tab

Select your region.

Wireless Network (2.4GHz b/g/n)

1: Name (SSID): type WiFi name for 2.4Ghz band.

2: Security Options – WPA2-PSK(AES)

Passphrase– change Netgear default wifi password in this box.

netgear n600 dual band wi fi router wndr3400 setup

Click Apply button save settings to avoid configuration lost.

Setup 5Ghz WiFi Name and Password

Drag page down to configure 5Ghz WiFi name and password.

Wireless Network (5GHz a/n/ac)

1: Name (SSID): type WiFi name for 2.4GHz band.

Enable SSID Broadcast

2: Security Options – WPA2-PSK(AES)

Passphrase– change Netgear default wifi password in this box.

netgear smart wifi router ac1750 dual band gigabit (r6300v2)

Press the Apply button to save settings.



Setup Guest WiFi Network in Netgear AC1200 WiFi Router

Guest network one of the best way to protect your private data and limit internet sharing with guests. Most of Dual-band wifi router support guest wifi network access with limitation and time access limit settings.

Enable Guest Network in Net gear genie R6220 WiFi router.

Go to Guest Network option from the left side menu.

Wireless Settings– Name SSID: type Guest WiFi name

Enable Guest Network

Security Option: WPA2-PSK [AES]

Passphrase: type guest wifi password.

netgear - nighthawk ac1900 dual-band wi-fi router

To enable Guest network in 5 GHz to enable same settings in 5Ghz  and click the Apply button to save settings.



Netgear R6220 Dual Band Router Default Password change

Netgear router comes with default password so change default login settings to protect from un-authorize access.

Go To Administration- Set Password

Old Password: type default password (password)

Set Password: type new password.

Repeat Password: Type the new password again.

netgear ac750 dual band wifi router setup

Enable Password Recovery: to reset Netgear R6220 wifi password set the recovery option.

Security Question1: Select the security question to password recovery of Netgear AC1200 WiFi router in case forgot.

Security Question 2: select second recovery question to recover Netgear password without making a factory reset.

Click the Apply button to save settings.



Related Post

  • How to Enable Sleeping Mode in WiFi Router
  • How to use WiFi Router as WLAN Adapter for Xbox and NVR
  • The 15 Best Wireless Range Extenders to Boost WiFi signal [Updated]

Download Netgear Dual Band Router Manual
