Do you want to monitor your CP plus camera from outside of the office or home? see simple configuration to access CP Plus DVR Setup for Live view from the internet. Simple steps to setup cp plus camera online view from any place in the world. Keep ready your DVR to know how to configure cp plus DVR for mobile.
How to configure CP Plus DVR for Mobile Live view from internet
CP Plus is a CCTV surveillance product provider. Today security comes first in any need of human life. To make the office, home, and our family protects everyone to use CCTV camera. CCTV camera monitors and records every activity going in your home and office. This post will describe you step to step how to configure CP Plus DVR network configuration for local and internet camera monitoring. Before 3-4 years back when we think about accessing CCTV from other locations with the internet than public or static IP addresses required. Stop CP PLus Beep alarm sound while hard disk space low or not detect to avoid the unnecessary sound.
Now when day by day technology grows we can access any CCTV and DVR from anywhere in the world because of the cloud server. Every leading CCTV manufacturer provides its cloud server and mobile application to access your DVR and surveillance from all over the world without having any static IP Address. see the complete user manual for CP Plus DVR Setup for the Live view from the internet worldwide. Facing color problems in CP Plus DVR when only working black & White video.

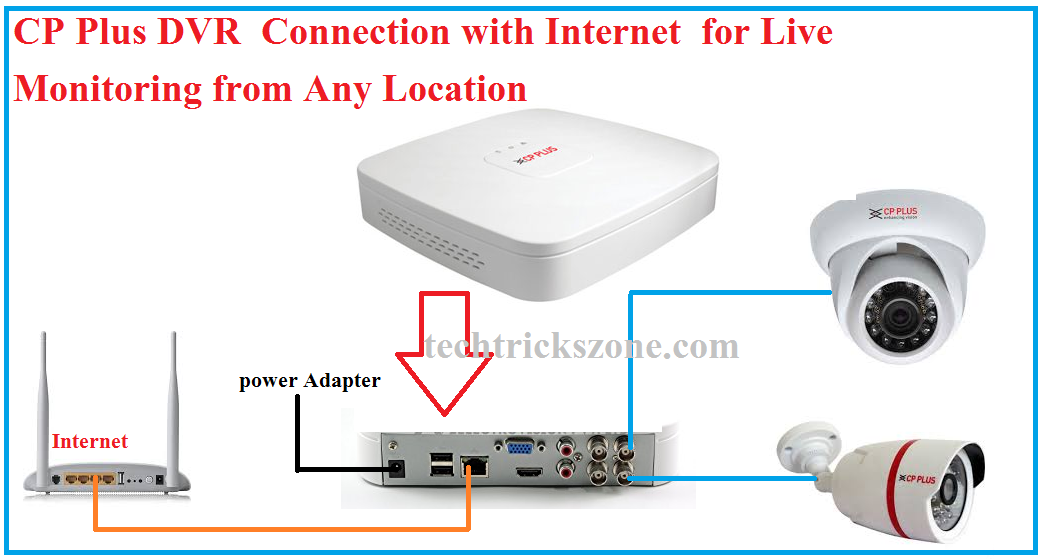

CP Plus DVR Camera and Network Connection Diagram
It does not matter you have 4 channels Cplus DVR or 16 channels DVR connection are some for all.DVR has a LAN port for network connectivity and a VGA port for connecting the display. 4 BNC connector for the camera in 4 channels DVR or as per DVR capacity you have used. Make sure you have an active internet connection to configure cp plus DVR online.
Connect LAN cable from your internet router to DVR LAN port to connect DVR on the internet and configure cp plus DVR and view live CCTV from mobile.
CP Plus DVR Network configuration to Live to monitor from the Internet
Once you have connected internet cable to DVR than you have to change an IPv4 setting.
You have to configure your DVR with the internet connection to get access from the internet. If the DVR network does not configure properly than you may not access the DVR from mobile apps.

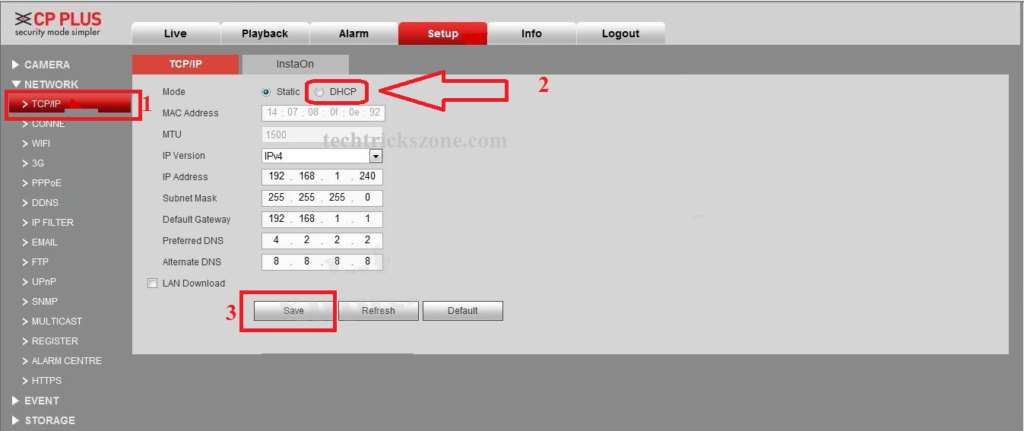

Go to setting menu and click TCP/IP settings.
Choose the DHCP option and click the save button to apply the setting.
CP Plus gCMOB Mobile Application installation and configuration
CP-Plus DVR can be accessed from the internet with the gCMOB application. gCMOB CP Plus cloud-based apps for CP Plus DVR (Digital video Recorder) and NVR (Network Video Recorder) from the internet at any place.

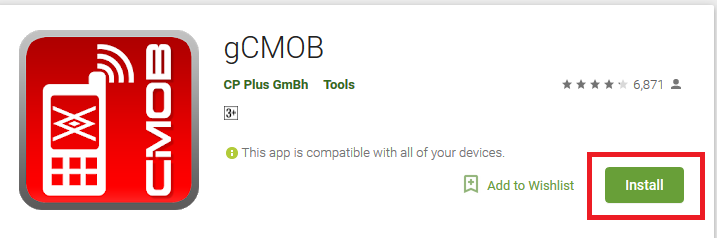

To download CP Plus App gCMOB from the Google Play store for Android and Apps store for I Phone.
CP Plus Mobile App configuration
Mobile apps need to download for cp plus DVR online configuration in mobile using cp plus cloud instaon features.
Install the CP Plus gCMOB application and open for configuration your DVR.
CP Plus gCMOB Mobile Apps configuration for Android and I Phone
Open CMOB application and skip the introduction of apps.
Click Camera ICON to enter in CCTV option. If you looking to add CP Plus door phone than choose the Door Phone option.
Now Click the + button to add DVR in mobile apps. You can also add the device from the video camera Icon top left side.

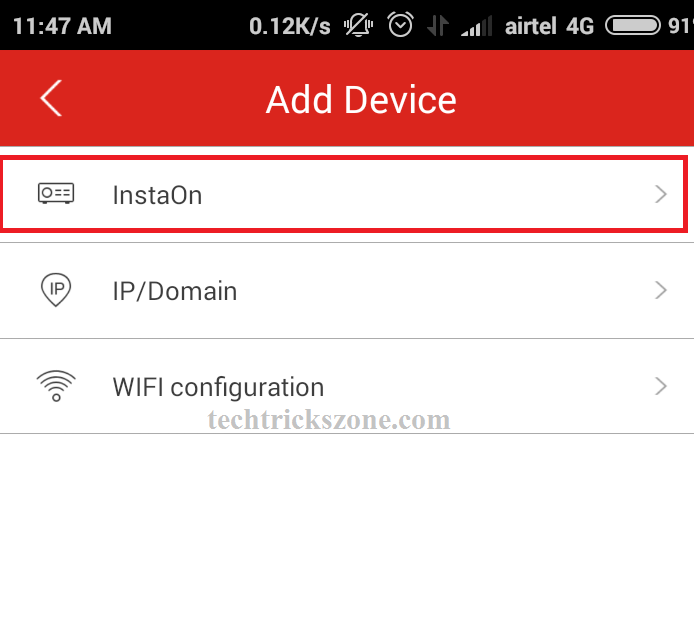

Click InstaOn option to add your DVR on the gCMOB mobile application for publicly monitoring from the internet at any location.

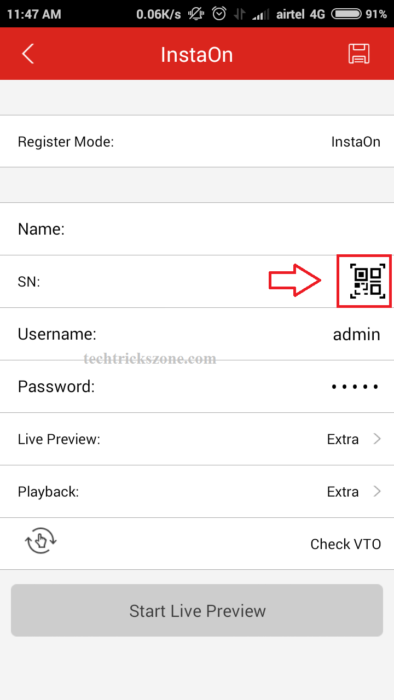

Click QR code icon to scan your DVR serial number as shown below image.
Or you can type manually DVR serial number from backside sticker and device information option.

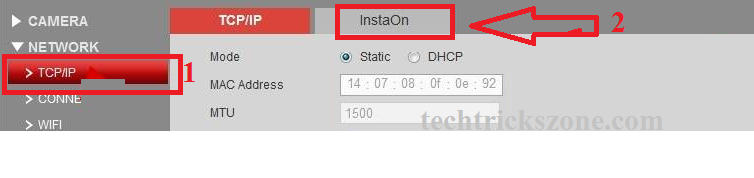

To get QR code inside the DVR web interface follows the below steps.
Login to DVR
Go to TCP/IP option and go to InstaOn option

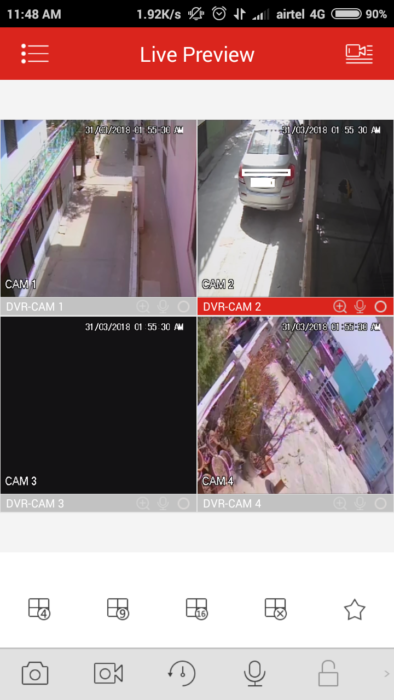

Once Done Click Live preview button to view your camera through the gCMOB mobile application.
If you are using more than 4 channel cameras and want to view all cameras in single windows click the channel setting below.
You can view 9 cameras 16 cameras in single windows.
To open one camera in full-screen double-tap the camera screen to open in full screen.
You can add multiple DVR from a different location to monitor fro same mobile device.
Add multiple DVR add follow the Add device steps again with every DVR.
CP-Plus DVR View Multiple DVR from Different Location in the same mobile Apps
If you have multiple locations where you have installed CP plus camera. With CP Plus CMOB mobile apps you can monitor all your DVR in single apps doesn’t matter where they installed. To view all DVR you required only internet connection on each location to make DVR access from the cloud.
You can add all DVR in the same mobile apps follow steps above.
View DVR from the different location

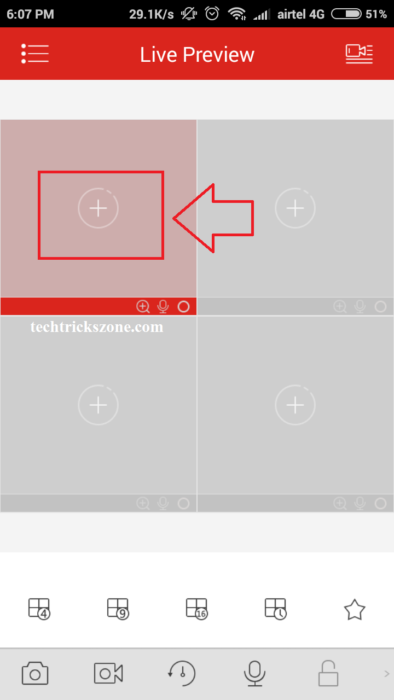

Click the + (PLUS) icon or any camera screen showing in the channel to select DVR.

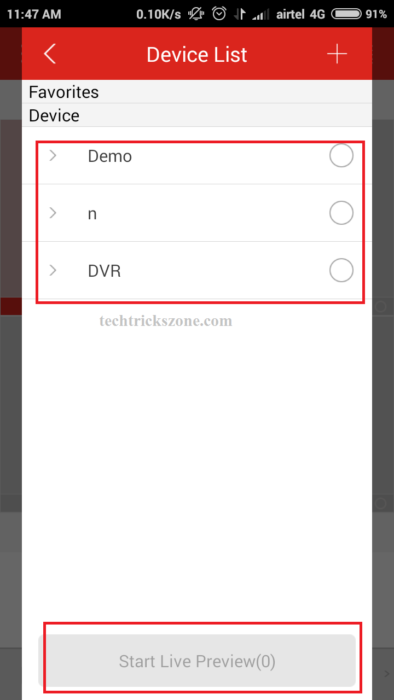

Device List — choose the DVR you want to monitor.
Click the option and press the Start Live preview button below.
Your camera will preview on your mobile screen.
CP Plus DVR monitoring mobile application available for Android as well as I Phone users. If you are an I Phone user you can also get help from this post to set up CP PLUS DVR on the mobile application. CP Plus Camera setup and installation same for both Android and I Phone user.
Use a Security device and keep always protect from suspicious activity happening all around you and your family. If you get any type of error and problem during setup and installation of CP Plus NVR and DVR installation please comments and email to get the solution. To configure cp plus dvr and view live cctv from the android phone the same steps for 8 channels and more.
